| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
249 pcs
|
249 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

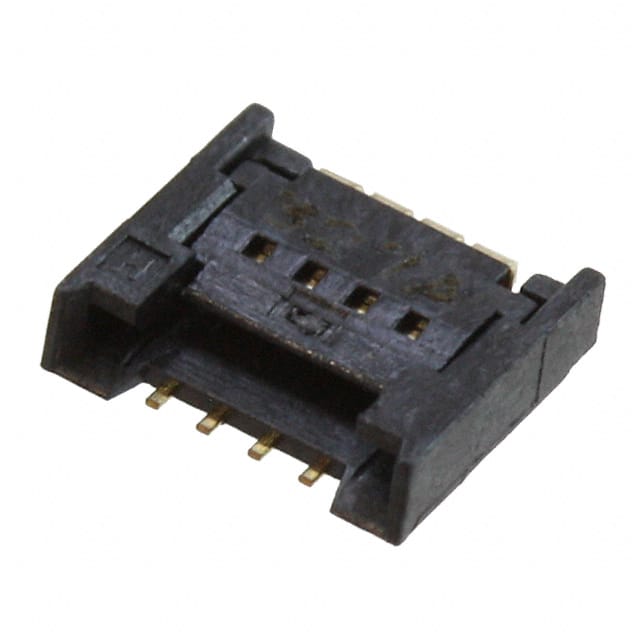

The FA1004SA1-R8000 from JAE Electronics is a 4-position FPC connector designed for flexible printed circuits. It features a 0.5mm pitch and a right-angle surface mount configuration, making it suitable for compact electronic assemblies. The connector supports tabbed cable ends and has contacts on both top and bottom for reliable connection. It is rated for 50V and operates over -40°C to 85°C. The housing and actuator are made of plastic with UL94 V-0 flammability rating, and contacts are copper alloy with gold finish. This connector uses low insertion force (LIF) design for easy mating. It is RoHS3 compliant and has MSL 1 unlimited. The packaging is Tape & Reel for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.49 | $0.49 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.42 | $0.42 |
| 1,000+ | $0.40 | $0.40 |
| 2,500+ | $0.37 | $0.37 |
| 5,000+ | $0.34 | $0.34 |
| 8,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
0.50mm (0.020")
50V
Surface Mount, Right Angle
-40°C to 85°C
Gold
UL94 V-0
