| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |
The Epson FA-238 25.0000MD-C is a 25MHz fundamental mode quartz crystal designed for surface mount applications. It offers a load capacitance of 18pF and an equivalent series resistance (ESR) of 50Ω. Frequency stability and tolerance are both rated at ±30ppm, ensuring reliable performance across temperature variations.

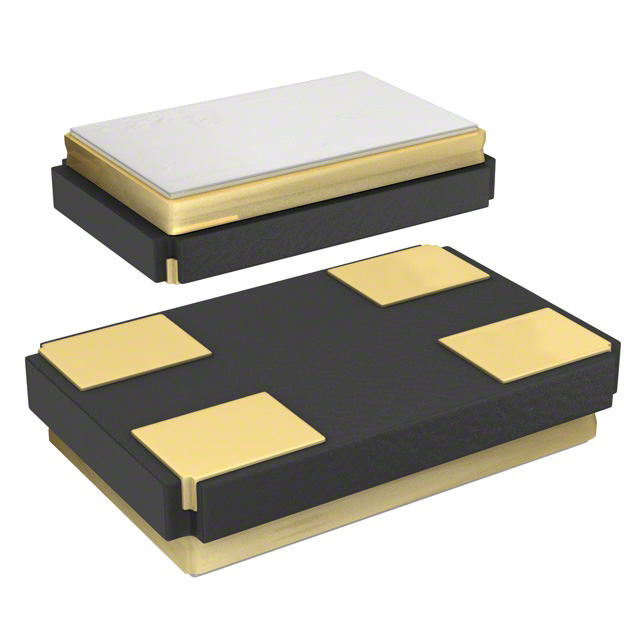

This crystal is housed in a compact 4-SMD, No Lead package measuring 3.20mm x 2.50mm with a height of 0.70mm. It operates over an industrial temperature range of -40°C to 85°C, making it suitable for a wide variety of environments.
The FA-238 series is commonly used in timing circuits for microcontrollers, communication devices, and consumer electronics. Its small footprint and low profile enable dense PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.94 | $0.94 |
| 25+ | $0.89 | $0.89 |
| 100+ | $0.81 | $0.81 |
| 250+ | $0.75 | $0.75 |
| 500+ | $0.73 | $0.73 |
| 1,000+ | $0.71 | $0.71 |
| 2,500+ | $0.68 | $0.68 |
| 5,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The crystal operates at 25 MHz.
The load capacitance is 18 pF.
The ESR is 50 Ω.
Frequency stability is ±30 ppm.
The operating temperature range is -40°C to 85°C.
It uses a 4-SMD, No Lead surface mount package.
It is listed as RoHS3 Compliant, but this status is unverified.
