| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 19/20+ | On Request | On Request | |
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

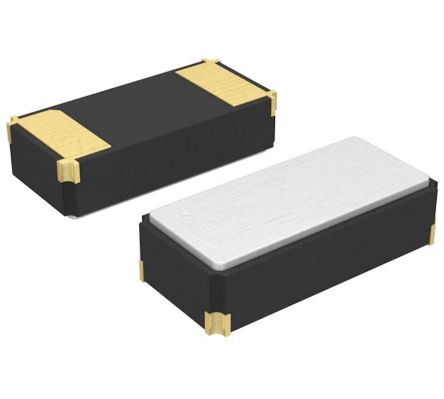

The Epson FA-238 24.0000MB-C3 is a fundamental mode MHz crystal operating at 24.0000MHz. It features a load capacitance of 18pF, frequency tolerance of ±50ppm, and frequency stability of ±30ppm over the operating temperature range of -20°C to 70°C. The equivalent series resistance (ESR) is 60Ω.
This crystal is housed in a compact surface mount package measuring 3.20mm by 2.50mm with a height of 0.70mm, suitable for space-constrained designs. It is designed for general-purpose timing and clock generation applications in consumer and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.91 | $0.91 |
| 25+ | $0.82 | $0.82 |
| 100+ | $0.79 | $0.79 |
| 250+ | $0.72 | $0.72 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.66 | $0.66 |
| 2,500+ | $0.63 | $0.63 |
| 5,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 70°C.
The load capacitance is 18pF.
RoHS status is listed as RoHS3 Compliant, but this is unverified.
