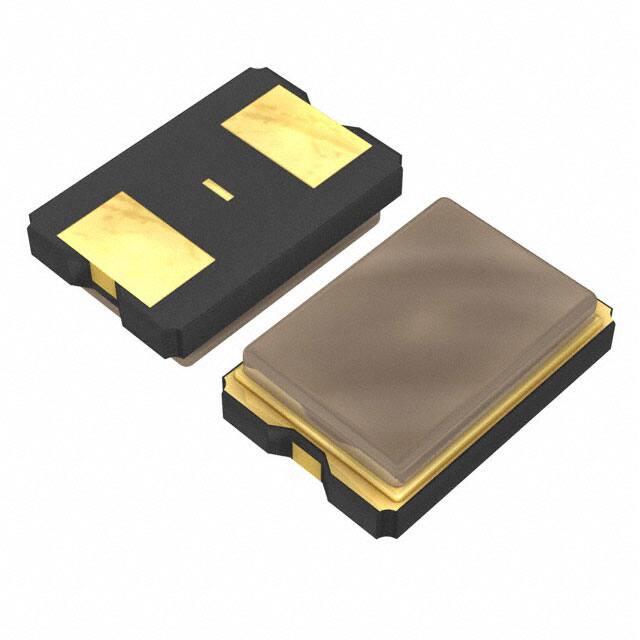

F91200091 12 MHz quartz crystal with 18pF load capacitance from Diodes Incorporated. Features ±30ppm frequency stability and tolerance, 50Ω ESR, in a 5.0x3.2mm ceramic SMD package.
Mfr Part #:

F91200091

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
12 MHz quartz crystal with 18pF load capacitance from Diodes Incorporated. Features ±30ppm frequency stability and tolerance, 50Ω ESR, in a 5.0x3.2mm ceramic SMD package.
✓ Total Stock: 6,000 pcs

F91200091 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F91200091 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Halogen Free
Industrial Grade
Lead Style
Load Capacitance
Medical Grade
Military Grade
Mounting Type
Operating Mode
Operating Temperature
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Type
View Similar Products (0)

F91200091 Description

Short technical summary and product information.

The F91200091 is a 12 MHz quartz crystal from Diodes Incorporated, part of the FY Series. It is designed for surface mount applications requiring a stable frequency reference. The crystal operates in fundamental mode with a nominal frequency of 12 MHz and a load capacitance of 18 pF. Frequency stability and tolerance are both ±30 ppm over the operating temperature range of -40°C to +85°C. The equivalent series resistance (ESR) is 50 Ω maximum. The crystal is housed in a compact 5.0 x 3.2mm ceramic SMD package with 4 pads, suitable for densely populated PCBs. It is RoHS3 compliant, halogen and antimony free, and available in tape and reel packaging with 1000 units per reel. Typical applications include portable devices, wireless LAN, GPS, Bluetooth, and USB dongles.

F91200091 Quick Information

Product Type: Crystal
Series: FY
Canonical Name: 12 MHz Crystal 18pF 5.0x3.2mm SMD
Subcategory: MHz Crystal

F91200091 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

F91200091 Features

  • 12 MHz fundamental mode quartz crystal.
  • 18pF load capacitance for oscillator circuits.
  • ±30ppm frequency stability and tolerance.
  • 50Ω maximum equivalent series resistance.
  • 5.0x3.2mm ceramic SMD package.

F91200091 Applications

  • Ideal for portable and handheld PCs.
  • Used in wireless LAN and Bluetooth devices.
  • Suitable for GPS and USB dongle applications.
  • Designed for PCMCIA card circuits.

F91200091 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the package size of the F91200091 crystal?

5.0 x 3.2mm ceramic SMD package.

What is the operating temperature range?

-40°C to +85°C.

Is the F91200091 RoHS compliant?

Yes, it is RoHS3 compliant and halogen and antimony free.

What is the load capacitance?

18 pF.

What is the frequency stability?

±30 ppm.

What is the ESR value?

50 Ω maximum.
