| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

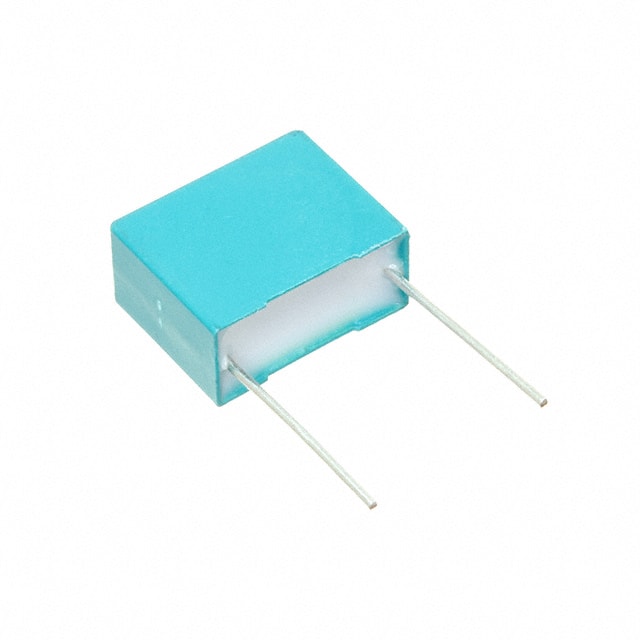

The KEMET F861KG103M310A is a metallized polypropylene film capacitor designed for EMI and RFI suppression applications. It offers a capacitance of 0.01 µF with ±20% tolerance and is rated for 630 VDC and 310 VAC (X2 class). The capacitor uses a metallized polypropylene dielectric, providing stable electrical characteristics and self-healing properties. It is housed in a radial through-hole package with PC pin terminations and a lead spacing of 7.5 mm. The operating temperature range spans -40°C to 110°C, with a dissipation factor of 0.3% at 1 kHz and insulation resistance of 30 GΩ. The maximum dV/dt is 500 V/µs, making it suitable for across-the-line applications and other safety-rated circuits. The capacitor is qualified to safety standards ENEC, UL, cUL, and CQC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.70 | $0.70 |
| 10+ | $0.47 | $0.47 |
| 100+ | $0.32 | $0.32 |
| 500+ | $0.26 | $0.26 |
| 1,000+ | $0.24 | $0.24 |
| 1,500+ | $0.22 | $0.22 |
| 4,500+ | $0.20 | $0.20 |
| 10,500+ | $0.19 | $0.19 |
| 24,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.01 µF
630 VDC and 310 VAC (X2)
Metallized Polypropylene (PP)
±20%
Radial, through hole
-40°C to 110°C
EMI and RFI suppression
