Mfr Part #:

F8025E24B-FSR

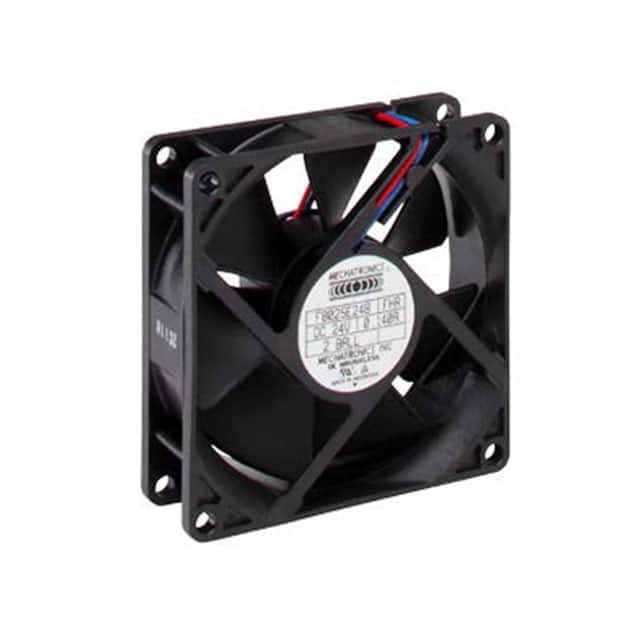

DC axial fan, 24VDC, 80x80x25mm size, 2800 RPM, 46.0 CFM airflow, 0.160 in H2O static pressure, 32.0 dB(A) noise. Ball bearing, 2 wire leads, UL94V-0 PBT frame and impeller.

✓ Total Stock: 97 pcs

$ Price Range: $7.48 - $12.41

F8025E24B-FSR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	97 pcs On Request	97 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

F8025E24B-FSR Description

Short technical summary and product information.

The F8025E24B-FSR is a 24VDC DC axial fan from the F8025 series by Mechatronics Fan Group. It features a compact 80x80x25mm square frame, making it suitable for space-constrained cooling applications. The fan is of tubeaxial type with a brushless DC motor.

Electrically, it operates at 24VDC nominal voltage and delivers a nominal speed of 2800 RPM. It provides an airflow of 46.0 CFM (1.29 m³/min) with a static pressure of 0.160 in H2O (39.8 Pa). The noise level is 32.0 dB(A). Motor protection includes reverse polarity protection and locked rotor protection, and the fan has an auto restart feature.

Mechanically, the fan uses ball bearings for longevity. The frame and impeller are constructed from UL94V-0 PBT plastic. The operating temperature range is -10°C to +70°C, and storage temperature is -40°C to +70°C. Insulation class is Class A. The fan weighs approximately 0.174 lb (78.93 g).

Termination is via 2 wire leads. The fan carries approvals from CE, cUL, TUV, and UL. Compliance with RoHS3 is claimed but unverified. This fan is designed for reliable cooling in various electronic equipment.

F8025E24B-FSR Quick Information

Product Type: DC Axial Fan

Series: F8025

Canonical Name: F8025E24B-FSR - 24VDC DC Axial Fan, 80x80x25mm, 2800 RPM, 46.0 CFM

Subcategory: Tubeaxial Fan

F8025E24B-FSR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

F8025E24B-FSR Estimated Pricing

Qty	Low	High
1+	$12.41	$12.41
10+	$10.23	$10.23
25+	$9.40	$9.40
50+	$8.79	$8.79
100+	$8.22	$8.22
300+	$7.48	$7.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

F8025E24B-FSR Features

Rated for 24VDC operation at 2800 RPM.
Delivers 46.0 CFM with 0.160 in H2O static pressure.
Ball bearing design for long life reliability.
Auto restart and locked rotor protection included.
UL94V-0 PBT frame and impeller construction.

F8025E24B-FSR Applications

Ideal for cooling electronic enclosures and equipment.
Used in telecom, medical, and industrial applications.
Suitable for confined spaces with 80mm square footprint.
Quiet operation at 32.0 dB(A) for noise-sensitive environments.

F8025E24B-FSR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage of F8025E24B-FSR?

24 VDC

What is the operating temperature range?

-10°C to +70°C

Is the F8025E24B-FSR RoHS compliant?

RoHS3 compliant (unverified)

What is the airflow of this fan?

46.0 CFM (1.29 m³/min)

What is the noise level?

32.0 dB(A)

What type of bearing is used?

Ball bearing

What approvals does this fan have?

CE, cUL, TUV, UL

Category	DC Brushless Fans (BLDC)
Manufacturer Name	Mechatronics Fan Group
Air Flow	46.0 CFM (1.29 m³/min)
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Locked Rotor Protection
Insulation Class	Class A
Lead Style	2 Wire Leads
Motor Type	Brushless DC
Noise	32.0 dB(A)
Operating Temperature	-10°C ~ +70°C
RPM	2800 RPM
Static Pressure	0.160 in H2O (39.8 Pa)
Storage Temperature	-40°C ~ +70°C
Termination	2 Wire Leads
Voltage	24 VDC
Weight	0.174 lb (78.93 g)
Width	25.00 mm
