| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105,000 pcs
|
105000 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Halogen Free | |
| Height | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| Tape & Reel | |
| Type | |
| Width |

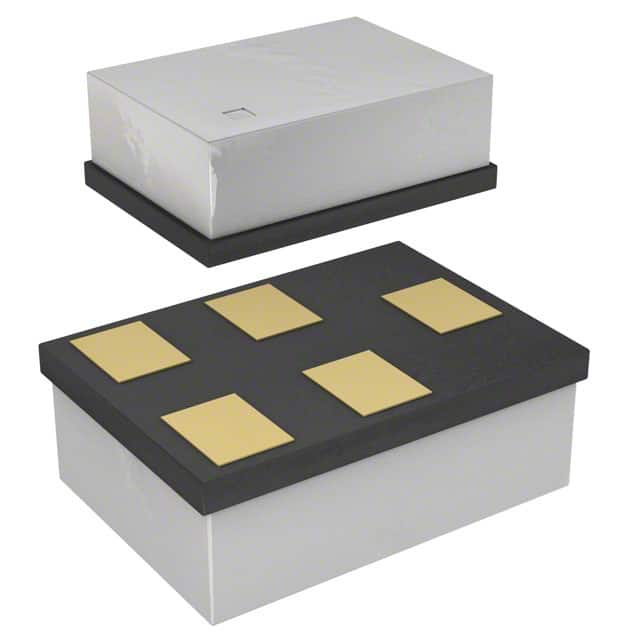

F6QG2G655P2KE-J from Taiyo Yuden is a surface acoustic wave (SAW) filter designed for W-CDMA Band 7 receive paths. It delivers 2.5 dB typical insertion loss and 52 dB typical attenuation, with balanced termination impedance for differential signal handling.
The filter operates over a temperature range of -30 to +85 °C, making it suitable for commercial communication equipment. It comes in a compact surface-mount package measuring 1.1 ±0.10 mm × 0.9 ±0.10 mm, with a maximum height of 0.5 mm.
The component is supplied in embossed tape packaging with a standard quantity of 10,000 pieces. It is compliant with RoHS3 (10 substances), REACH (223 substances), and is halogen free, supporting environmental compliance requirements in wireless device manufacturing.
Typical applications include RF front-end receive filtering in W-CDMA mobile devices and communication modules.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-30 to +85 °C.
1.1 ±0.10 mm length, 0.9 ±0.10 mm width, and 0.5 mm maximum height in a surface-mount package.
Yes, it is RoHS3 compliant (10 substances) per the datasheet.
Insertion loss is 2.5 dB typical; attenuation is 52 dB typical.
It is designed for W-CDMA Band 7 receive applications.
10,000 pieces per embossed tape reel.
Yes, the datasheet indicates halogen free compliance.
