| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
762 pcs
|
762 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Abrasion Protection | |
| Color | |
| Diameter | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Melting Point | |
| Operating Temperature | |
| Type | |
| Type Attributes | |
| Wall Thickness |

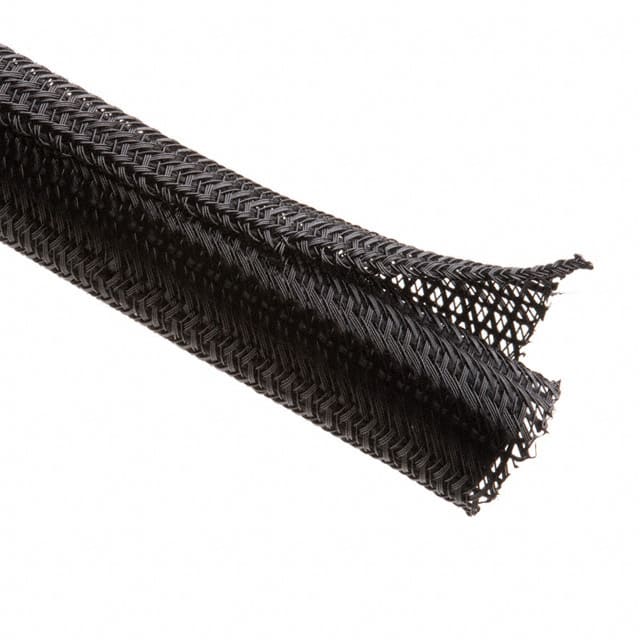

The Techflex F6N0.25BK25 is a self-wrap split braided tube designed for bundling and protecting wires and cables. Made from polyethylene terephthalate (PET) material, it is halogen free and offers chemical resistance and clean cut features. The tube has an inner diameter of 6.35 mm (0.250") and a wall thickness of 0.64 mm (0.025"). It is available in a 25-foot (7.62 m) length and comes in black color. The tube features a 25% edge overlap at nominal diameter, allowing it to cover inline plugs and connectors. It is flexible and can bend to a tight radius without distorting.
The F6N0.25BK25 is rated for operating temperatures from -70°C to 125°C and has a melting point of 250°C. It is flammability rated UL94 V-0 and also passes FMVSS 302 and SAE J369. The braided construction provides abrasion and cut resistance. The split design allows easy installation without additional fasteners. This product is suitable for applications requiring cable management, protection from abrasion, and chemical resistance. It is commonly used in automotive, aerospace, and industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.33 | $20.33 |
| 2+ | $18.69 | $18.69 |
| 3+ | $17.80 | $17.80 |
| 5+ | $16.73 | $16.73 |
| 7+ | $16.07 | $16.07 |
| 10+ | $15.39 | $15.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -70°C to 125°C.
RoHS3 compliant status is listed but unverified.
The inner diameter is 6.35 mm (0.250").
The length is 7.62 m (25.00 feet).
It is made of polyethylene terephthalate (PET) and is halogen free.
It is rated UL94 V-0 and also passes FMVSS 302 and SAE J369.
Yes, it is halogen free.
