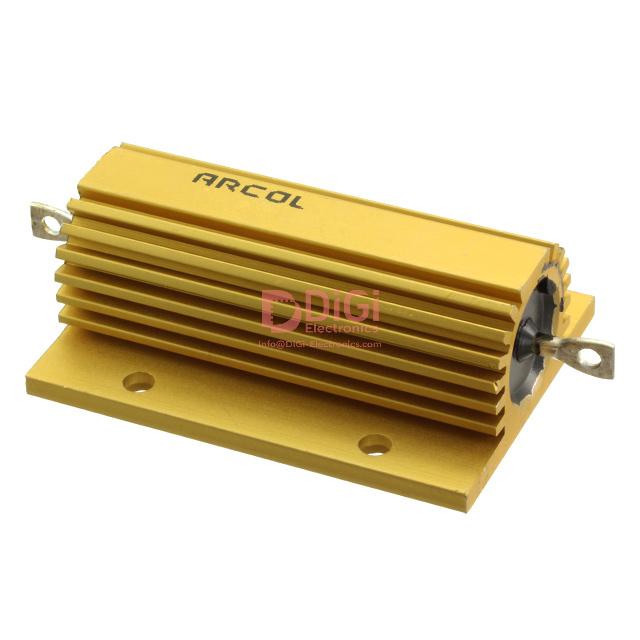

F40J5R0 The Ohmite F40J5R0 is a wirewound chassis mount resistor with a resistance of 5 Ohms and a power rating of 40W. It offers a tolerance of ±5%.
Mfr Part #:

F40J5R0

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite F40J5R0 is a wirewound chassis mount resistor with a resistance of 5 Ohms and a power rating of 40W. It offers a tolerance of ±5%.
✓ Total Stock: 16 pcs
$ Price Range: $0.05

F40J5R0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F40J5R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coating, Housing Type
Composition
Height
Lead Style
Length
Mounting Feature
Operating Temperature
Power (Watts)
Resistance
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

F40J5R0 Description

Short technical summary and product information.

The Ohmite F40J5R0 is a wirewound chassis mount resistor designed for demanding applications. It features a resistance value of 5 Ohms with a tolerance of ±5%, ensuring precise circuit performance. The resistor is rated for 40W of power dissipation, making it suitable for high-power applications.



Constructed with a vitreous enamel coating, this resistor offers durability and protection. It has a temperature coefficient of ±400ppm/°C and an operating temperature range of -55°C to 350°C, providing stability across various environmental conditions. The mounting feature includes flange braces and right-angle mounting, facilitating secure installation.



With a height of 14.29mm (0.563") and dimensions of 50.80mm x 25.40mm (2.000" L x 1.000" W), the F40J5R0 is designed for chassis mounting. It utilizes solder lug lead styles for reliable connections. This resistor is RoHS3 compliant and has an MSL rating of 1.

F40J5R0 Quick Information

Product Type: Chassis Mount Resistor
Series: ARCOL, HS
Canonical Name: Ohmite F40J5R0 Wirewound Chassis Mount Resistor 5 Ohm 40W ±5%
Subcategory: Chassis Mount Resistor

F40J5R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F40J5R0 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

F40J5R0 Features

  • Wirewound chassis mount resistor.
  • 5 Ohm resistance with ±5% tolerance.
  • 40W power dissipation rating.
  • Vitreous enamel coated for durability.
  • Wide operating temperature range.

F40J5R0 Applications

  • Suitable for high-power circuits.
  • Used in demanding thermal environments.
  • Requires stable resistance values.
  • Facilitates secure chassis mounting.

F40J5R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Ohmite F40J5R0?

The resistance of the Ohmite F40J5R0 is 5 Ohms.

What is the power rating of the F40J5R0 resistor?

The F40J5R0 resistor has a power rating of 40W.

What is the tolerance of the Ohmite F40J5R0?

The tolerance of the Ohmite F40J5R0 is ±5%.

What is the operating temperature range for this resistor?

The operating temperature range for this resistor is -55°C to 350°C.

What type of coating does the F40J5R0 resistor have?

The F40J5R0 resistor has a vitreous enamel coated housing.

How is the F40J5R0 resistor mounted?

The F40J5R0 resistor is designed for chassis mounting and features flange braces for right-angle installation.

What is the MSL rating for the F40J5R0?

The MSL rating for the F40J5R0 is 1 Unlimited.
