| Category | |
| Manufacturer Name | |
| Coating, Housing Type | |
| Composition | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Feature | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

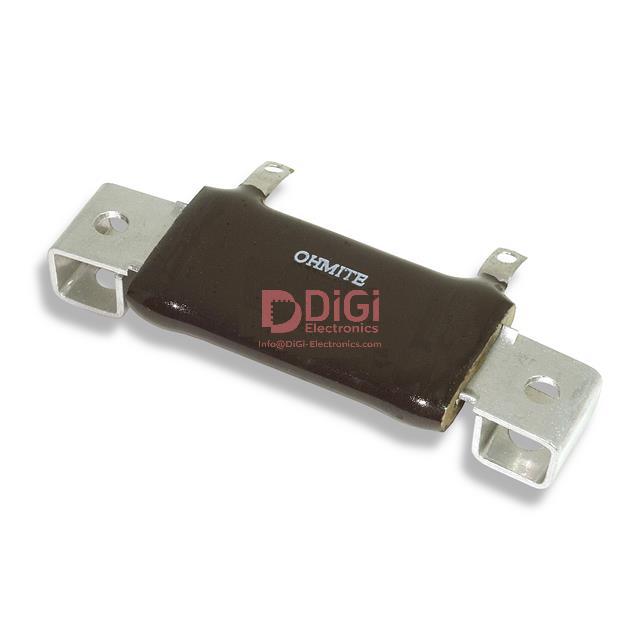

This Ohmite F40J25R is a wirewound chassis mount resistor designed for robust thermal performance. It offers a resistance value of 25 Ohms with a tight tolerance of ±5%, making it suitable for applications requiring precise power dissipation.
The resistor has a power rating of 40W and operates within a wide temperature range of -55°C to 350°C. Its construction features a vitreous enamel coating for durability and protection. The mounting is facilitated by flange braces and right-angle mounting, with solder lug terminals for secure connections.
With a height of 14.29mm and dimensions of 50.80mm L x 25.40mm W, this component is designed for efficient heat sinking when mounted to a chassis. The package type is Radial, Flat Oval, ensuring a compact footprint in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value of the F40J25R resistor is 25 Ohms.
The power rating of the F40J25R resistor is 40 Watts.
The tolerance of the F40J25R resistor is ±5%.
The operating temperature range is from -55°C to 350°C.
It features flange braces and right-angle mounting with solder lugs.
The package type is radial, flat oval.
It is RoHS3 compliant.
