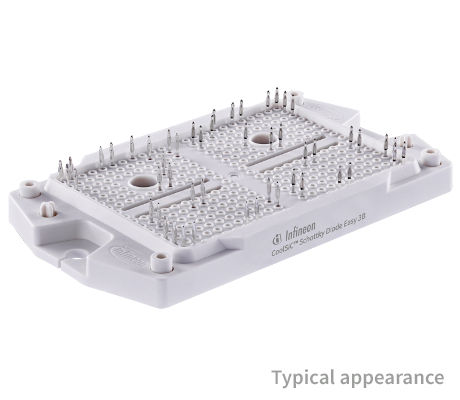

F3L400R10W3S7F_B11 The Infineon F3L400R10W3S7F_B11 is an IGBT module from the EasyPACK™ series. It features TRENCHSTOP™ IGBT7 technology and a CoolSiC™ Schottky diode.
Mfr Part #:

F3L400R10W3S7F_B11

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon F3L400R10W3S7F_B11 is an IGBT module from the EasyPACK™ series. It features TRENCHSTOP™ IGBT7 technology and a CoolSiC™ Schottky diode.
✓ Total Stock: 7,386 pcs
$ Price Range: $103.07

F3L400R10W3S7F_B11 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
7,386 pcs
On Request
7386 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F3L400R10W3S7F_B11 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Input Capacitance
SVHC Present
View Similar Products (0)

F3L400R10W3S7F_B11 Description

Short technical summary and product information.

The Infineon F3L400R10W3S7F_B11 is an EasyPACK™ module incorporating TRENCHSTOP™ IGBT7 technology and a CoolSiC™ Schottky diode. This module is designed for applications requiring high voltage and current handling capabilities, with a collector-emitter voltage (VCES) of 950V and a nominal collector current (ICN) of 400A.



Key electrical features include low inductive design and low switching losses, contributing to efficient power conversion. The module also integrates an NTC temperature sensor for thermal monitoring and utilizes PressFIT contact technology for reliable connections. Its mechanical design includes a package with a Comparative Tracking Index (CTI) greater than 400.



Potential applications for this IGBT module include 3-level applications and solar power systems. The combination of advanced IGBT and SiC Schottky diode technology makes it suitable for demanding power electronics designs.

F3L400R10W3S7F_B11 Quick Information

Product Type: IGBT Module
Series: EasyPACK™
Canonical Name: Infineon EasyPACK™ Module with TRENCHSTOP™ IGBT7 and CoolSiC™ Schottky Diode and PressFIT / NTC
Subcategory: IGBT Modules

F3L400R10W3S7F_B11 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F3L400R10W3S7F_B11 Estimated Pricing

Qty Low High
1+ $103.07 $103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

F3L400R10W3S7F_B11 Features

  • EasyPACK™ module with IGBT7 and SiC diode.
  • 950V collector-emitter voltage rating.
  • 400A nominal collector current.
  • Low inductive and low switching losses.
  • Integrated NTC temperature sensor.

F3L400R10W3S7F_B11 Applications

  • Suitable for 3-level applications.
  • Ideal for solar power systems.
  • Efficient power conversion designs.
  • High voltage and current handling.

F3L400R10W3S7F_B11 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating?

Maximum collector-emitter voltage is 950V.

What package is the module in?

EasyPACK package.

What is the continuous DC collector current?

220A at TH=65°C, Tvj max=175°C.

What is the gate threshold voltage?

5.10V typical at 25°C.

Does the module have an integrated NTC temperature sensor?

Yes, it has an integrated NTC temperature sensor.

What switching technology is used?

Trenchstop IGBT7 technology.

What is the gate charge?

0.90 µC typical.
