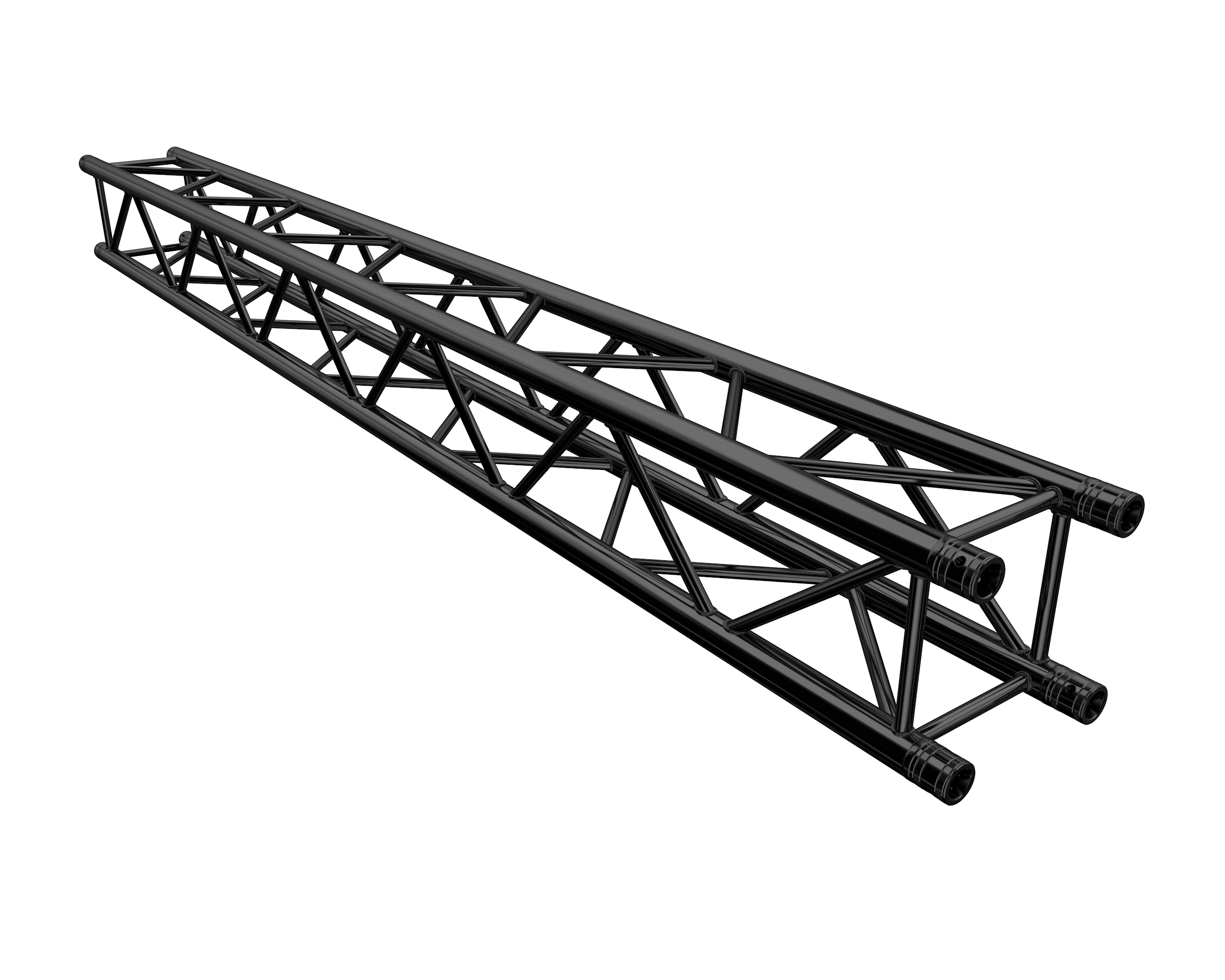

F34 The Global Truss F34300-B is a 300cm black, 4-point stage truss. It is constructed with 50mm main tubes and 2mm wall thickness, offering robust support for various applications.

Mfr Part #:

F34

The Global Truss F34300-B is a 300cm black, 4-point stage truss. It is constructed with 50mm main tubes and 2mm wall thickness, offering robust support for various applications.

✓ Total Stock: 23 pcs

$ Price Range: $0.99

F34 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	23 pcs On Request	23 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

F34 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ATI-INTERCO
Color	black
Dimensions	3000 x 290 x 290 mm
Material	Al EN AW-6082 T6
Package Quantity	1
Type	straight
Weight	16 kg

View Similar Products (0)

F34 Description

Short technical summary and product information.

The Global Truss F34300-B is a 300cm straight stage truss in black, part of the F34 series. This TÜV-certified, 4-point system is designed for reliability and ease of use in event structures, exhibition stands, and shop fittings.

Constructed with main tubes of 50mm diameter and 2mm wall thickness, and 20mm diagonal braces with 2mm wall thickness, this truss offers a strong load capacity relative to its weight and dimensions. The external dimension is 29cm, and it utilizes conical connectors for secure assembly.

This F34 truss system is suitable for a wide range of applications, including stage roofs and outdoor structures, with a maximum span capability of up to 18 meters. The material is Al EN AW-6082 T6, ensuring durability and performance. The truss can also be powder coated in any RAL color upon request.

Specifications include a length of 300cm, main pipe diameter of 50mm, main pipe wall thickness of 2mm, brace diameter of 20mm, and brace wall thickness of 2mm. The hardware weight is 16kg, with shipping dimensions of 3000 x 300 x 300 mm and a shipping weight of 19.08kg.

F34 Quick Information

Product Type: Stage Truss

Series: F34

Canonical Name: Global Truss F34 300cm Stage Truss

Subcategory: F34 Truss

F34 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

F34 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

F34 Features

300cm black 4-point stage truss.
50mm main tubes with 2mm wall thickness.
20mm braces with 2mm wall thickness.
TÜV certified for safety and reliability.
Constructed from durable Al EN AW-6082 T6.

F34 Applications

Ideal for exhibition stands and shop fittings.
Suitable for stage roofs and outdoor structures.
Used in event structures and temporary stages.
Provides robust support for lighting and sound.

F34 FAQs

7 frequently asked questions generated from this part’s specifications.

What are the main dimensions of the Global Truss F34300-B?

The truss has a length of 300 cm, an edge dimension of 29 cm, and overall dimensions of 3000 x 290 x 290 mm.

What material is the Global Truss F34300-B made from?

The truss is constructed from Al EN AW-6082 T6 aluminum.

Is the Global Truss F34300-B TÜV certified?

Yes, the Global Truss F34300-B is TÜV certified.

What is the weight of the Global Truss F34300-B?

The hardware weight of the truss is 16 kg, and the shipping weight is 19.08 kg.

What is the RoHS status of this product?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this truss?

The MSL is 1 Unlimited.

What is the REACH status for the Global Truss F34300-B?

The REACH status is REACH Unaffected.
