Mfr Part #:

F280039CSPZR

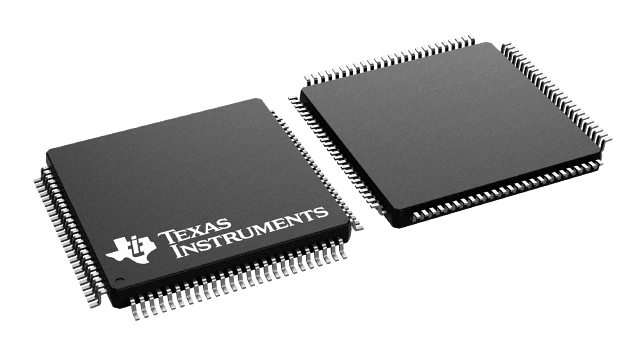

The Texas Instruments F280039CSPZR is a 32-bit C2000 MCU operating at 120 MHz. It features 384KB of flash memory and is housed in an LQFP package.

✓ Total Stock: 7,819 pcs

$ Price Range: $4.12

F280039CSPZR Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	2,985 pcs On Request	2985 pcs	On Request	1	On Request	On Request	25+	On Request	On Request
Eito Shoji ✓ Non-Authorised Inventory information	2,739 pcs On Request	2739 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,095 pcs On Request	2095 pcs	On Request	1	On Request	On Request	25+	On Request	On Request

F280039CSPZR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Microcontrollers
Manufacturer Name	Texas Instruments
Core Processor	TMS320C28x
Frequency	120 MHz
Operating Temperature	-40 to 125 °C
Tape & Reel	Yes
Watchdog Timer	Windowed

View Similar Products (0)

F280039CSPZR Description

Short technical summary and product information.

The Texas Instruments F280039CSPZR is a high-performance 32-bit microcontroller based on the TMS320C28x core, operating at a frequency of 120 MHz. This MCU is equipped with 384KB of flash memory and 69KB of RAM, both protected by ECC. It includes essential features like an IEEE 754 Floating-Point Unit (FPU), Trigonometric Math Unit (TMU), and Control Law Accelerator (CLA), making it suitable for demanding real-time applications.

Key peripherals include a 6-channel DMA controller and 55 programmable GPIO pins. The device supports advanced features such as AES encryption and CAN-FD for robust communication. It operates within a temperature range of -40 to 125 °C and is supplied in a 100-pin LQFP package.

This microcontroller is designed for applications requiring precise control and high processing power, such as motor control, digital power, and automation systems. Its integrated security features like JTAGLOCK and dual-zone security enhance system protection.

F280039CSPZR Quick Information

Product Type: Microcontroller

Series: TMS320F28003x

Canonical Name: Texas Instruments TMS320C28x 32-bit MCU

Subcategory: 32-bit MCU

F280039CSPZR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

F280039CSPZR Estimated Pricing

Qty	Low	High
1+	$4.12	$4.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

F280039CSPZR Features

32-bit C2000 MCU at 120 MHz.
384KB flash and 69KB RAM memory.
Includes FPU, TMU, and CLA.
Supports AES and CAN-FD protocols.
100-pin LQFP package for integration.

F280039CSPZR Applications

Ideal for real-time control systems.
Suitable for motor control applications.
Used in digital power designs.
Applicable for industrial automation.
Supports sensing and processing tasks.

F280039CSPZR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the F280039CSPZR?

The operating temperature range is -40 to 125 °C.

What type of package is the F280039CSPZR in?

The F280039CSPZR is in a 100-pin LQFP package.

What is the flash memory size of the F280039CSPZR?

The F280039CSPZR has 384KB of flash memory.

What is the clock speed of the F280039CSPZR?

The F280039CSPZR operates at a clock speed of 120 MHz.

Does the F280039CSPZR have a Floating Point Unit (FPU)?

Yes, the F280039CSPZR includes an IEEE 754 Floating-Point Unit (FPU).

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL rating is Level-3-260C-168 HR.
