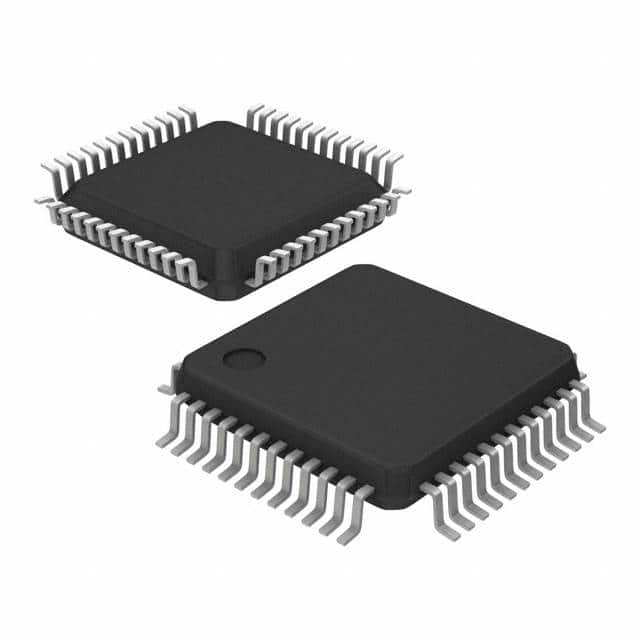

F280025PMS The Texas Instruments F280025PMS is a 32-bit microcontroller with a 100MHz C28x core, 128KB of flash memory, and 12KB of RAM. It is housed in a 64-LQFP package.
Mfr Part #:

F280025PMS

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments F280025PMS is a 32-bit microcontroller with a 100MHz C28x core, 128KB of flash memory, and 12KB of RAM. It is housed in a 64-LQFP package.
✓ Total Stock: 10,807 pcs
$ Price Range: $2.90

F280025PMS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,700 pcs
On Request
9700 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,107 pcs
On Request
1107 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F280025PMS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Frequency
Mounting Type
Number of I
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

F280025PMS Description

Short technical summary and product information.

The Texas Instruments TMS320F28002x series microcontroller, specifically the F280025PMS model, is designed for real-time applications. It features a powerful 32-bit C28x DSP core operating at 100MHz, complemented by an IEEE 754 Floating-Point Unit (FPU) and a Trigonometric Math Unit (TMU).



This MCU offers 128KB of ECC-protected flash memory and 24KB of ECC or parity-protected RAM, providing ample space for code and data. It includes a comprehensive set of peripherals such as a 6-channel DMA controller, 43 GPIO pins, two 12-bit ADCs, and multiple communication interfaces including CAN, I2C, SPI, and UART.



The F280025PMS is supplied in a 64-pin LQFP package, suitable for surface mounting. It operates within a voltage range of 2.81V to 3.63V and has an operating junction temperature range of -40°C to 125°C. The device also supports various low-power modes and includes diagnostic features like Brownout reset (BOR) and a watchdog timer.

F280025PMS Quick Information

Product Type: Microcontroller
Series: TMS320F28002x
Canonical Name: Texas Instruments TMS320F28002x Real-Time Microcontroller
Subcategory: Real-time digital power MCUs

F280025PMS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F280025PMS Estimated Pricing

Qty Low High
1+ $2.90 $2.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

F280025PMS Features

  • 32-bit C28x DSP core at 100MHz
  • 128KB flash and 24KB RAM on-chip
  • Includes FPU and Trigonometric Math Unit
  • 64-pin LQFP package for surface mounting
  • Wide operating temperature range of -40°C to 125°C

F280025PMS Applications

  • Real-time control applications
  • Embedded system design
  • Motor control and automation
  • Signal processing tasks

F280025PMS FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the F280025PMS?

The operating voltage for the F280025PMS is between 2.81V and 3.63V.

What package type is the F280025PMS microcontroller supplied in?

The F280025PMS is supplied in a 64-LQFP package.

What is the operating temperature range for the F280025PMS?

The operating temperature range for the F280025PMS is -40°C to 125°C (TJ).

What is the RoHS status of the F280025PMS?

The F280025PMS is RoHS3 Compliant.
