| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Stability | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

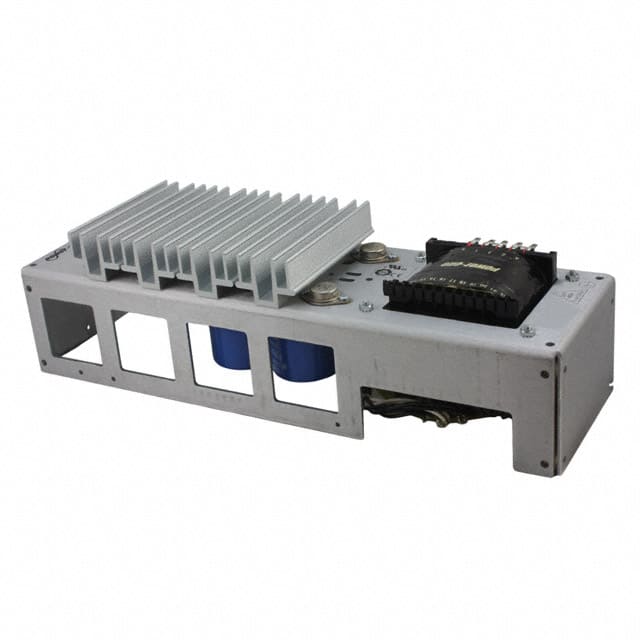

The Bel Power Solutions F15-15-AG is a linear AC/DC converter designed for ITE (Commercial) applications. It delivers 192W of power with a single output of 16A.
Key electrical specifications include an efficiency of 55%, adjustable output with remote sense capabilities, and a wide AC input range supporting 100-240 Vac. The unit offers robust protection features such as automatic current limit/foldback for short circuits and built-in overvoltage protection on 5V models.
This converter operates within a temperature range of 0°C to 50°C and has a stability of ±0.05% for 24 hours after warmup. It meets stringent safety standards, including approval to EN/CSA/IEC/UL62368-1, and exceeds FCC and CISPR22 Class B conducted emissions.
Designed for chassis mounting, the F15-15-AG has dimensions of 425.5mm x 124.0mm x 127.0mm. It comes with a 3-year warranty and is RoHS3 compliant.
The F15-15-AG provides a single 12V output at 16A for a total power of 192W.
It accepts 100, 120, 240 Vac (+10%/-13%), 215 Vac (+12%/-11%), and 230 Vac (+15%/-10%) at 47 to 63Hz. Derate output current 10% for 50Hz operation.
The operating temperature range is 0°C to 50°C.
Yes, remote sensing is provided on all models with built-in open sense lead protection.
It is approved to EN/CSA/IEC/UL62368-1 and exceeds FCC and CISPR22 Class B conducted emissions.
