F1420NLGK8 The Integrated Device Technology F1420NLGK8 is an RF amplifier designed for GPS applications. It operates within a 700MHz to 1.1GHz frequency range.
Mfr Part #:

F1420NLGK8

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The Integrated Device Technology F1420NLGK8 is an RF amplifier designed for GPS applications. It operates within a 700MHz to 1.1GHz frequency range.
✓ Total Stock: 58 pcs
$ Price Range: $1.50

F1420NLGK8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
58 pcs
On Request
58 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F1420NLGK8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Frequency Range
Gain
Mounting Type
Noise Figure
RF Type
Supply Voltage
Test Frequency
View Similar Products (0)

F1420NLGK8 Description

Short technical summary and product information.

The F1420NLGK8 from Integrated Device Technology is a general-purpose RF amplifier suitable for GPS applications. It operates across a frequency range of 700MHz to 1.1GHz, with a nominal test frequency of 960MHz.



This amplifier features a supply voltage range of 4.75V to 5.25V and consumes 105mA of current. Key electrical characteristics include a nominal gain of 17.5dB, a P1dB compression point of 23.2dBm, and a noise figure of 4.5dB.

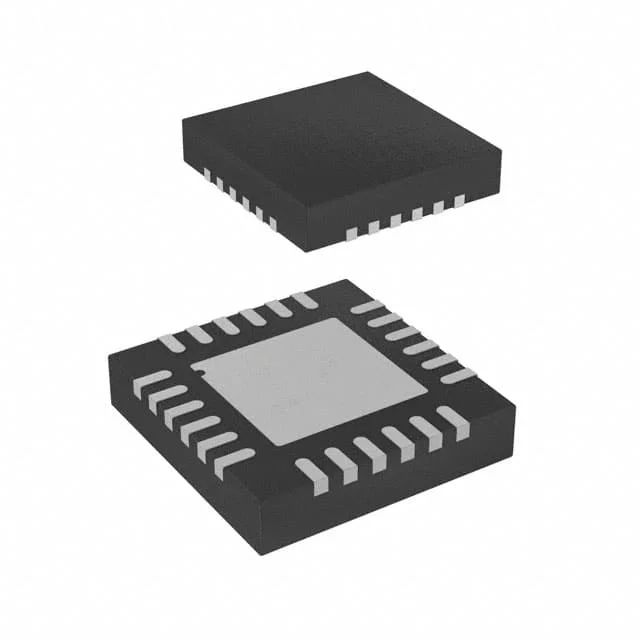

The F1420NLGK8 is housed in a 24-VFQFPN (4x4) package and is designed for surface mounting. The component is supplied on tape and reel.

F1420NLGK8 Quick Information

Product Type: RF Amplifier
Canonical Name: IC AMP GPS 700MHz-1.1GHz 24VFQFPN
Subcategory: GPS Receiver Amplifier

F1420NLGK8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F1420NLGK8 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

F1420NLGK8 Features

  • Operates from 700MHz to 1.1GHz.
  • Provides 17.5dB of nominal gain.
  • Features a 23.2dBm P1dB compression point.
  • Surface mount 24-VFQFPN package.
  • Designed for general purpose RF applications.

F1420NLGK8 Applications

  • Ideal for wireless infrastructure applications.
  • Suitable for general purpose RF amplification.
  • Used in cellular base station receivers.
  • Applicable in ISM band transmitters.

F1420NLGK8 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.75V to 5.25V.

What package does the F1420NLGK8 come in?

24-VFQFN Exposed Pad (also 24-VFQFPN 4x4).

What frequency range does this amplifier cover?

700MHz to 1.1GHz.

What is the typical gain?

17.5dB.

What is the noise figure?

4.5dB.

What is the P1dB compression point?

23.2dBm.

What is the supply current?

105mA.
