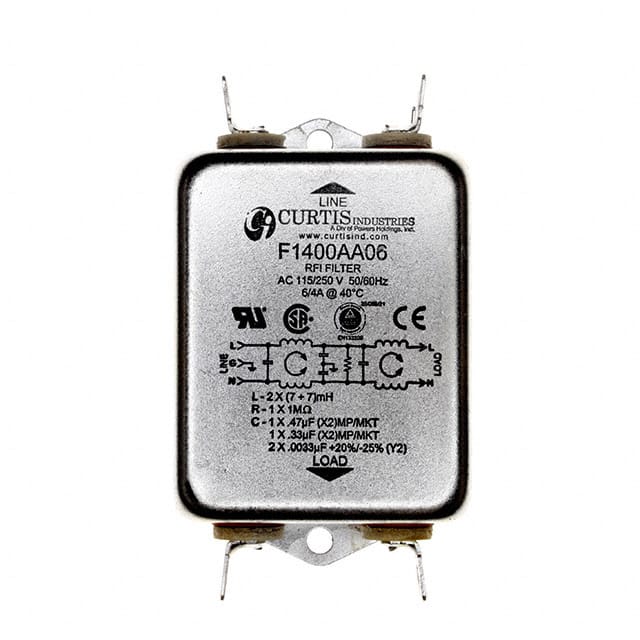

F1400AA06 The F1400AA06 is a 250VAC, 6A chassis mount power line filter by Curtis Industries. It features a two-stage design with quick connect terminals and low leakage current.
Mfr Part #:

F1400AA06

Available from 1 distributors
Mfr Name: Curtis Industries
Curtis Industries
The F1400AA06 is a 250VAC, 6A chassis mount power line filter by Curtis Industries. It features a two-stage design with quick connect terminals and low leakage current.
✓ Total Stock: 10 pcs
$ Price Range: $44.99 - $67.22

F1400AA06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F1400AA06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Ambient Temperature
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Humidity Range
Insulation Resistance
Lead Style
Mounting Type
Termination Style
Voltage
View Similar Products (0)

F1400AA06 Description

Short technical summary and product information.

The Curtis Industries F1400AA06 is a single-phase power line filter designed for RFI suppression in switching power supplies and other electronic equipment. It is rated for a maximum voltage of 250VAC at 50/60Hz and has a rated current of 6A at 115VAC and 4A at 250VAC. The filter features a two-stage configuration with common and differential mode insertion loss up to 65dB over a frequency range of 0.15MHz to 30MHz. It has low leakage current of 0.25mA at 115VAC/60Hz and 0.40mA at 250VAC/50Hz. The filter is chassis mountable with quick connect (QC/QC) terminals and measures 84.1mm x 50.8mm x 38.2mm. It is approved by CE, CSA, TUV, and UR agencies.

F1400AA06 Quick Information

Product Type: Power Line Filter Module
Series: F1400
Canonical Name: Curtis Industries F1400AA06 Power Line Filter, 250VAC, 6A, Chassis Mount
Subcategory: Single Phase Filter

F1400AA06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F1400AA06 Estimated Pricing

Qty Low High
1+ $67.22 $67.22
10+ $54.86 $54.86
30+ $49.78 $49.78
50+ $47.59 $47.59
100+ $44.99 $44.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

F1400AA06 Features

  • Rated for 250VAC maximum voltage.
  • Delivers 6A at 115VAC or 4A at 250VAC.
  • Two-stage filter design for high insertion loss.
  • Low leakage current design.
  • Chassis mount with quick connect terminals.

F1400AA06 Applications

  • Used for RFI suppression in switching power supplies.
  • Suitable for general purpose single-phase power line filtering.
  • Ideal for equipment requiring low leakage current.

F1400AA06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the F1400AA06?

The maximum rated voltage is 250VAC at 50/60Hz.

What is the rated current of the F1400AA06?

The rated current is 6A at 115VAC and 4A at 250VAC.

What is the insertion loss of the F1400AA06?

Common mode insertion loss is 58dB at 0.15MHz, up to 65dB from 0.5MHz to 5MHz. Differential mode insertion loss is 36dB at 0.15MHz, up to 60dB at 1.0MHz and 5.0MHz.

What is the leakage current of the F1400AA06?

Maximum leakage current is 0.25mA at 115VAC/60Hz and 0.40mA at 250VAC/50Hz (each line to ground).

What agency approvals does the F1400AA06 have?

The filter is approved by CE, CSA, TUV, and UR.

What is the mounting type and termination style?

The filter is chassis mount with quick connect (QC/QC) terminals.

Is the F1400AA06 RoHS compliant?

RoHS3 compliant status is unverified, but listed as RoHS3 compliant in the database.
