| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,709 pcs
|
9709 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Voltage Rating |

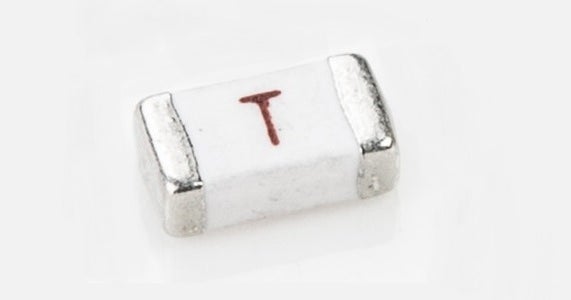

The AEM Inc F1206SB2500V032TM is a slow blow surface mount fuse from the SolidMatrix® SB Series. It features a multilayer monolithic structure with a glass ceramic body and silver fusing element.
This fuse has a current rating of 2.5A and a voltage rating of 32VDC, with an interrupting rating of 50A at rated voltages. The operating temperature range is -55°C to +150°C with derating. It is designed for high inrush current withstanding capability.
The fuse is constructed with silver termination with nickel and pure-tin solder plating, ensuring excellent solderability. It is compatible with both wave and reflow soldering processes. The package size is 1206, and it is supplied on tape and reel.
Key electrical characteristics include a nominal cold DCR of 0.065 Ω and a nominal I2t rating of 0.90 A2s. Clearing time characteristics are provided for various overcurrent conditions, such as 1 second minimum at 200% current and 0.05 seconds maximum at 800% current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 2.5A.
The voltage rating is 32VDC.
The interrupting rating is 50A at rated voltages.
The operating temperature range is -55°C to +150°C with derating.
The clearing time is a minimum of 1 second and a maximum of 120 seconds.
The package type is 1206, and it is a surface mount device supplied on tape and reel.
