| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,143 pcs
|
8143 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Thickness | |
| Voltage Rating | |
| Width |

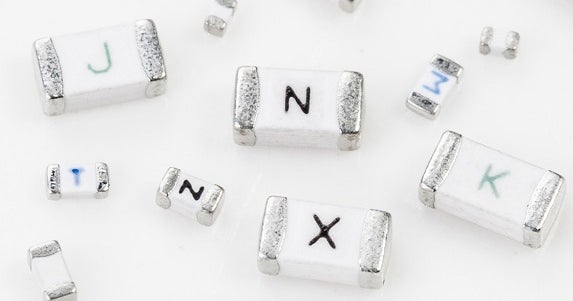

The AEM Inc F1206FA4000V032TM is a fast-acting surface mount fuse belonging to the SolidMatrix F1206FA series. This fuse features a multilayer monolithic structure with a glass ceramic body and a silver fusing element.
Key electrical specifications include a nominal current rating of 4A and a voltage rating of 32V DC. It has an interrupting rating of 45A at rated voltages and a nominal cold DCR of 0.022 Ω. The fuse also provides a nominal I2t value of 0.350 A²s.
Designed for surface mounting, this fuse has dimensions of 3.20mm in length, 1.60mm in width, and 0.85mm in thickness. The termination width is 0.51mm. It is compatible with both wave and reflow soldering processes and comes in tape and reel packaging.
The operating temperature range for this fuse is -55°C to 150°C. Clearing time characteristics are defined at various current levels, with a maximum of 5 seconds at 250% rated current and 0.05 seconds at 400% rated current.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 4A.
The voltage rating is 32V DC.
The interrupting rating is 45A at rated voltages.
The fuse measures 3.20mm in length, 1.60mm in width, and 0.85mm in thickness.
The operating temperature range is -55°C to 150°C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
