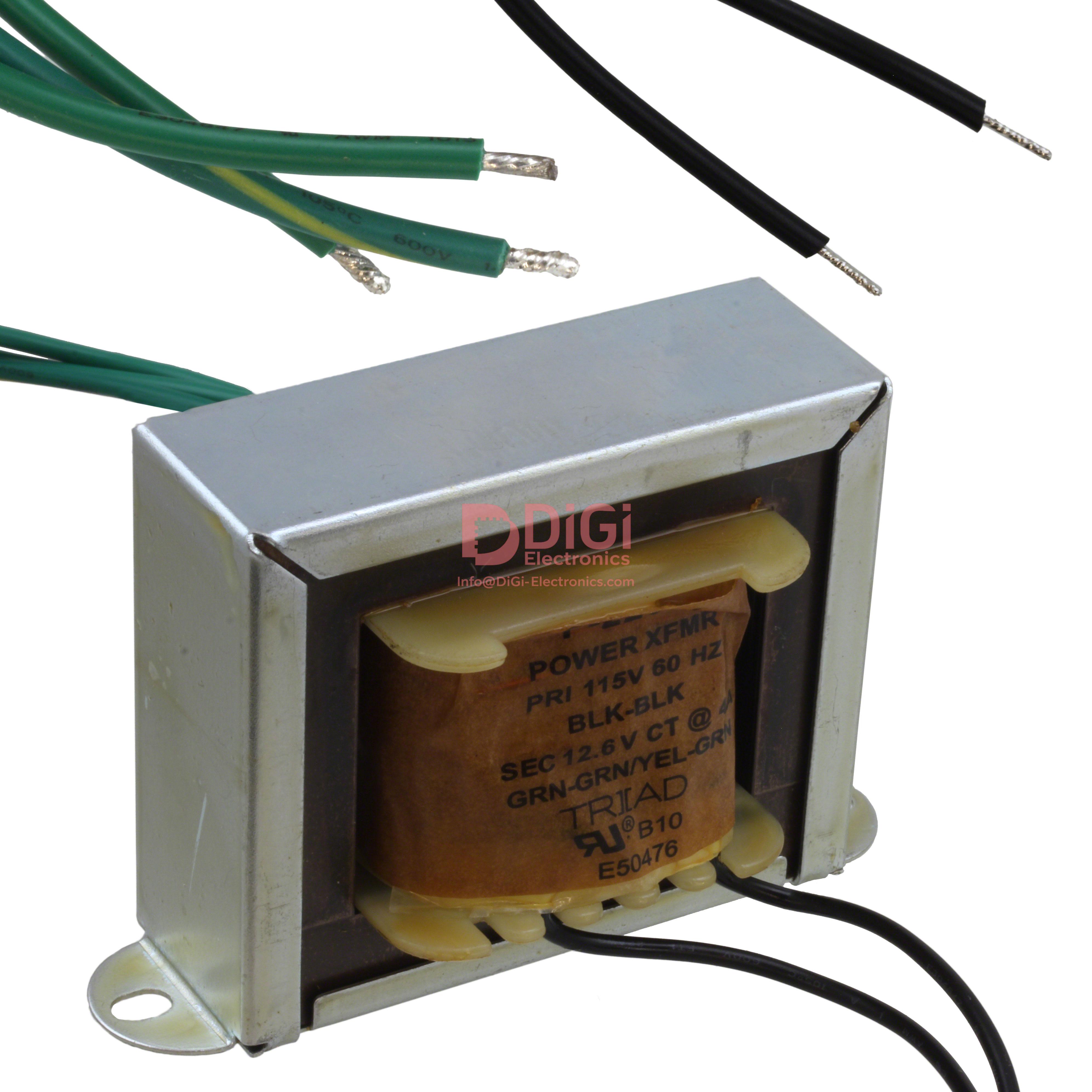

F-225X The Triad Magnetics F-225X is a laminated core power transformer with a 50.4VA rating. It features a 115V primary and a 12.6V secondary winding.
Mfr Part #:

F-225X

Available from 1 distributors
Mfr Name: Triad Magnetics
Triad Magnetics
The Triad Magnetics F-225X is a laminated core power transformer with a 50.4VA rating. It features a 115V primary and a 12.6V secondary winding.
✓ Total Stock: 2 pcs
$ Price Range: $3.00

F-225X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

F-225X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Tap
Current
Height
Lead Spacing
Mounting Type
Power
Primary Winding(s)
Secondary Winding(s)
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
Weight
View Similar Products (0)

F-225X Description

Short technical summary and product information.

The Triad Magnetics F-225X is a power transformer designed with a laminated core for efficient power conversion. It offers a maximum power rating of 50.4VA, making it suitable for various power supply applications.



This transformer operates with a primary voltage of 115V and provides a secondary voltage of 12.6V under full load. It is equipped with single primary and secondary windings and includes a center tap for flexible configuration. The maximum output current is rated at 4A.



Designed for robust integration, the F-225X features a chassis mount type and wire leads for termination. Its dimensions are 101.60mm in length and 52.37mm in width, with a seated height of 66.68mm. The transformer also provides an isolation voltage of 1500Vrms, ensuring safety in operation. It weighs 2.3 lbs (1 kg).



Environmental compliance includes RoHS3 status. The component is packaged in a box.

F-225X Quick Information

Product Type: Power Transformer
Series: Single Secondary
Canonical Name: Triad Magnetics F-225X Power Transformer
Subcategory: Power Transformer

F-225X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

F-225X Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

F-225X Features

  • Laminated core power transformer.
  • 50.4VA maximum power rating.
  • 115V primary, 12.6V secondary.
  • Chassis mount with wire leads.
  • 1500Vrms isolation voltage.

F-225X Applications

  • Suitable for power supply applications.
  • Used in general electronics projects.
  • Integration into control systems.
  • Power conversion tasks.

F-225X FAQs

6 frequently asked questions generated from this part’s specifications.
What is the power rating of the F-225X transformer?

The F-225X transformer has a maximum power rating of 50.4VA.

What are the primary and secondary voltages for the F-225X transformer?

The F-225X transformer has a primary voltage of 115V and a secondary voltage of 12.6V.

What is the maximum output current for the F-225X transformer?

The maximum output current for the F-225X transformer is 4A.

How is the F-225X transformer mounted?

The F-225X transformer is designed for chassis mounting.

What type of core does the F-225X transformer use?

The F-225X transformer uses a laminated core.

What is the isolation voltage of the F-225X transformer?

The F-225X transformer has an isolation voltage of 1500Vrms.
