Mfr Part #:

EZM22DRXH

Name: EZM22DRXH
SKU: EZM22DRXH

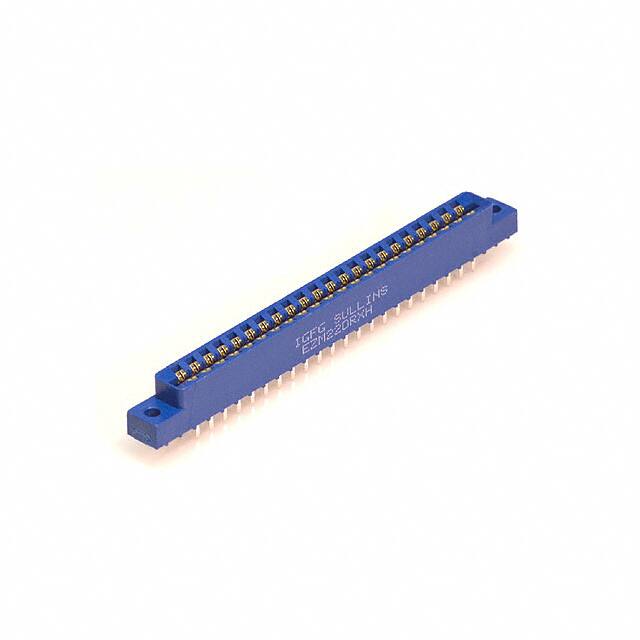

CONN EDGE DUAL FMALE 44POS 0.156

Stock on Request

EZM22DRXH Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 44POS 0.156

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

EBM22DRUH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.156

EBM22DRYH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.156

ESM22DRTH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.156

ESM22DRYH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.156

Account

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Flange Feature	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Female
Mounting Type	Through Hole
Number of Positions	22
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Solder
