| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX Approval | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

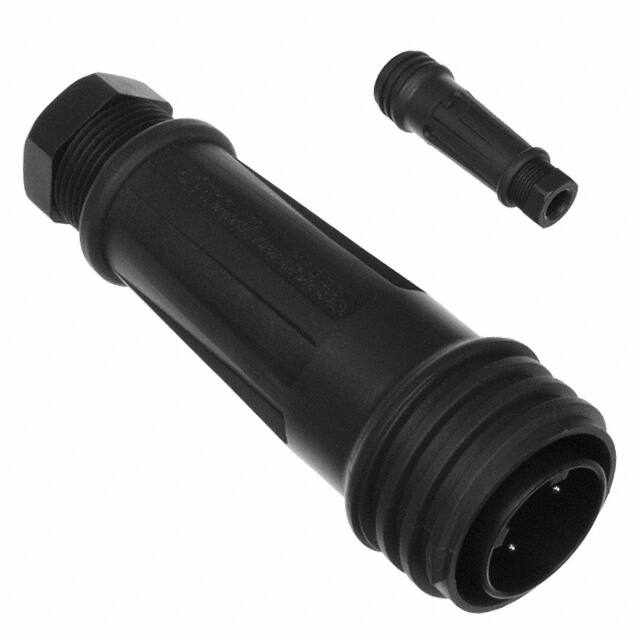

The Bulgin EXP-0921/03/P is a circular connector assembly from the EXPlora series, designed for hazardous area applications (ATEX Zone 2/22). It features a receptacle with male pins in a 3-position configuration (2 power contacts plus protective earth). The connector uses a threaded fastening system and is keyed for proper orientation.
Electrical ratings include 18A current capacity and 600V AC/DC voltage rating. The connector is unshielded and constructed with a plastic (polyester) shell, nickel-plated contacts, and screw termination. It accepts cables with an outer diameter between 13.00mm and 15.00mm.
The connector is rated IP68 for dust-tight and waterproof operation when mated, and includes a backshell and UV-resistant materials. It is rated for operating temperatures from -20°C to 55°C and meets UL94 V-0 flammability requirements.
18 A.
600 V AC/DC.
Free hanging (in-line).
IP68 - dust tight and waterproof.
-20°C to 55°C.
ATEX II 3 GD, Ex nA IIC T6 Gc / Ex tc IIIC T85°C Dc.
