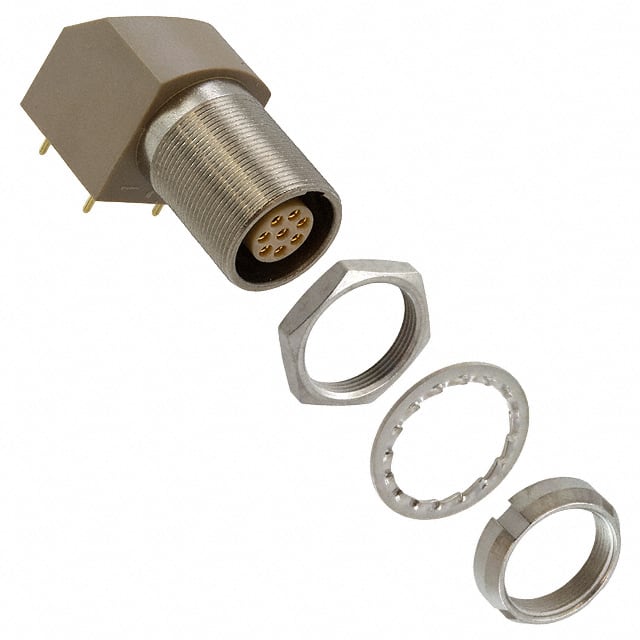

EXG.1B.308.HLN LEMO EXG.1B.308.HLN is an 8-position female circular connector with gold-plated contacts, solder termination, and push-pull locking. It features a metal shell with nickel finish and is rated for 2 A per contact.
Mfr Part #:

EXG.1B.308.HLN

Available from 1 distributors
Mfr Name: Lemo
Lemo
LEMO EXG.1B.308.HLN is an 8-position female circular connector with gold-plated contacts, solder termination, and push-pull locking. It features a metal shell with nickel finish and is rated for 2 A per contact.
✓ Total Stock: 100 pcs

EXG.1B.308.HLN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 22.35 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EXG.1B.308.HLN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Resistance
Current Rating (Amps)
Fastening Type
Features
Gender
Housing Material
Ingress Protection
Insulator Material
Keying
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Operating Temperature Range
Orientation
Primary Material
Rated Current
Shell Finish
Shell Material
Shell Size
Shielding
Termination
Weight
View Similar Products (0)

EXG.1B.308.HLN Description

Short technical summary and product information.

The LEMO EXG.1B.308.HLN is a high-quality circular connector from the B Series, designed for indoor keyed applications. It is a receptacle with 8 female sockets, each rated for 2 A current, with a maximum contact resistance of 6.1 mOhm. The connector uses a push-pull locking mechanism and is keyed with a G orientation.



The shell is constructed from brass and polyphenylene sulfide (PPS) with a nickel finish, providing durability and shielding effectiveness of at least 75 dB at 10 MHz and 40 dB at 1 GHz. The insulator is made from PEEK (UL94 V-0 rated). The connector is panel mounted via bulkhead front side nut and terminated through solder contacts.



This connector is suitable for applications requiring reliable signal integrity and environmental protection up to IP50 (dust protected). It can withstand operating temperatures from -55°C to +250°C and has an endurance of 5000 mating cycles.

EXG.1B.308.HLN Quick Information

Product Type: Circular Connector Assembly
Series: B
Canonical Name: LEMO B Series 8 Position Female Circular Connector, Solder Termination, Push-Pull, IP50
Subcategory: Receptacle, Female Sockets

EXG.1B.308.HLN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EXG.1B.308.HLN Features

  • 8-position female circular connector with gold contacts.
  • Rated for 2 A per contact with low resistance.
  • Push-pull locking mechanism for secure connection.
  • Shielded metal shell with nickel finish.
  • IP50 dust protected and wide temperature range.

EXG.1B.308.HLN Applications

  • Ideal for indoor signal and data connections.
  • Used in test and measurement equipment.
  • Suitable for medical device interconnects.
  • Applicable in industrial control systems.

EXG.1B.308.HLN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EXG.1B.308.HLN connector have?

It has 8 positions (female sockets).

What is the current rating of this connector?

The rated current is 2 A per contact.

What mounting type does the EXG.1B.308.HLN use?

It is panel mount with through hole, right angle solder termination, using a bulkhead front side nut.

What is the operating temperature range?

The operating temperature range is -55°C to +250°C.

What is the ingress protection rating?

The connector has an IP50 rating, meaning it is dust protected.

What is the suggested mating plug for this receptacle?

The suggested mating plug is LEMO FGG.1B.308.CLAD42.

What is the contact finish?

The contacts are finished with gold.
