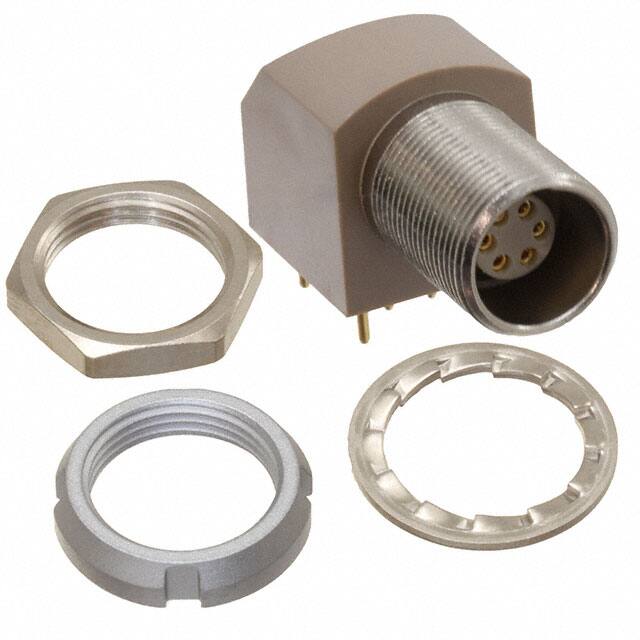

The LEMO EXG.0B.306.HLN is a 6-position female socket circular connector from the B series, designed for indoor keyed applications. It features a receptacle with female sockets, gold-plated contacts for reliable conductivity, and a push-pull locking mechanism for secure mating.
This connector is rated for a current of 2.5 A and can operate over a wide temperature range from -55°C to 250°C. It offers IP50 dust protection and is shielded for EMI protection, with minimum shielding effectiveness of 75 dB at 10 MHz and 40 dB at 1 GHz. The contact resistance is maximum 8.7 mOhm, and test voltages are 1.2 kV rms (contact-body shell) and 1.25 kV rms (contact-contact).
The connector is designed for panel mount with through hole, right angle termination, and solder termination. It features a bulkhead front side nut mounting feature and a shell size of 306. The shell is made of brass and polyphenylene sulfide (PPS) with nickel finish, and the insulator material is PEEK with UL94 V-0 flammability rating.
With an endurance of 5000 mating cycles and resistance to shock (100 g for 6 ms) and vibration (15 g from 10 Hz to 2000 Hz), this connector is suitable for demanding environments. It also withstands salt spray corrosion for over 144 hours and humidity up to 95% at 60°C.
The connector has 6 positions.
The current rating is 2.5 A.
The mounting type is panel mount, through hole, right angle.
The operating temperature range is -55°C to 250°C.
The ingress protection rating is IP50 (dust protected).
Yes, it is shielded with minimum shielding effectiveness of 75 dB at 10 MHz and 40 dB at 1 GHz.
The fastening type is push-pull.
