| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,010 pcs
|
7010 pcs | On Request | 1 | On Request | On Request | 04+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request | |
|
4,699 pcs
|
4699 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,358 pcs
|
1358 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

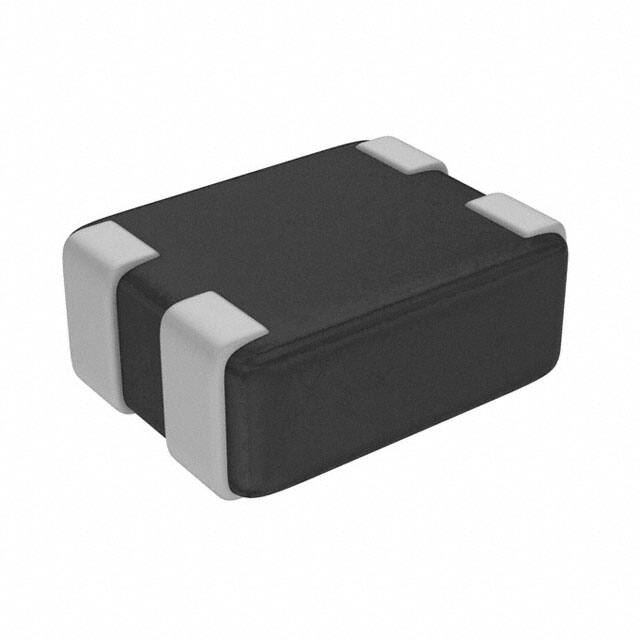

The EXC-24CE900U is a common mode choke from Panasonic Electronic Components designed for signal line filtering applications. It features a nominal impedance of 90 Ohms at 100 MHz, with a maximum current rating of 160 mA and a voltage rating of 5V. The component includes two lines for common mode noise suppression.
This choke is packaged in a surface mount 0504 (1210 Metric) package with 4 leads, measuring 1.25mm in length, 1.00mm in width, and a maximum height of 0.60mm. It operates over a temperature range of -40°C to 85°C. The maximum DC resistance is 1.75 Ohms.
Typical applications include noise filtering in digital interfaces, USB lines, and other signal lines where common mode noise must be attenuated. The compact size makes it suitable for space-constrained designs. The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited), though compliance data is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.29 | $0.29 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.25 | $0.25 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.21 | $0.21 |
| 5,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V.
0504 (1210 Metric) with 4 leads.
-40°C to 85°C.
RoHS3 Compliant (unverified).
90 Ohms.
160 mA.
2 lines.
