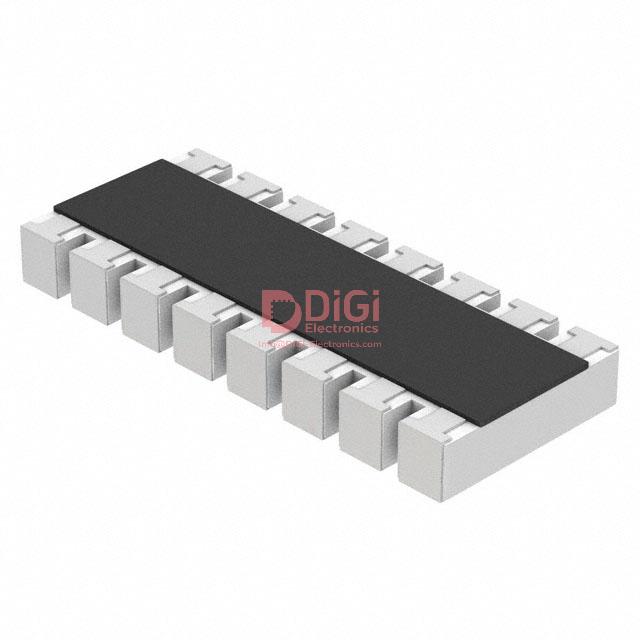

EXB2HV560JV The Panasonic Electronic Components EXB2HV560JV is an 8-resistor network array with a resistance of 56 Ohms and ±5% tolerance. It offers 62.5mW power per element.
Mfr Part #:

EXB2HV560JV

Available from 3 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components EXB2HV560JV is an 8-resistor network array with a resistance of 56 Ohms and ±5% tolerance. It offers 62.5mW power per element.
✓ Total Stock: 8,093 pcs
$ Price Range: $0.05

EXB2HV560JV Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
5,540 pcs
On Request
5540 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EXB2HV560JV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Number of Pins
Number of Resistors
Power Per Element
Resistance
SVHC Present
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

EXB2HV560JV Description

Short technical summary and product information.

The Panasonic Electronic Components EXB2HV560JV is a resistor network array designed for various electronic applications. This component features 8 individual resistors, each with a resistance value of 56 Ohms and a tolerance of ±5%.



Each resistor element within the network is rated for 62.5mW of power. The network is configured as isolated resistors, providing flexibility in circuit design. The temperature coefficient is ±200ppm/°C, ensuring stable performance across a range of operating temperatures.



This resistor network array comes in a 1506 package size. It is suitable for applications requiring precise resistance values and reliable performance. The isolated configuration allows for independent use of each resistor, making it versatile for signal conditioning, pull-up/pull-down functions, and other circuit needs.

EXB2HV560JV Quick Information

Product Type: Resistor Network Array
Series: EXB
Canonical Name: Panasonic Electronic Components EXB-2HV560JV Resistor Network Array
Subcategory: Resistor Networks, Arrays

EXB2HV560JV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EXB2HV560JV Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

EXB2HV560JV Features

  • 8 isolated resistors in one package.
  • 56 Ohm resistance with ±5% tolerance.
  • 62.5mW power rating per element.
  • ±200ppm/°C temperature coefficient.
  • 1506 package for surface mounting.

EXB2HV560JV Applications

  • Ideal for signal conditioning circuits.
  • Suitable for pull-up/pull-down applications.
  • Used in general electronic assemblies.
  • Provides precise resistance networks.

EXB2HV560JV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of each resistor?

56 ohms.

What is the resistance tolerance?

±5%.

How many resistors are in the network?

8 resistors.

What is the circuit configuration of the resistor network?

Isolated.

What is the package type?

1506.

What is the power rating per element?

62.5mW.

What is the temperature coefficient of resistance?

±200ppm/°C.
