| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,810 pcs
|
9810 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

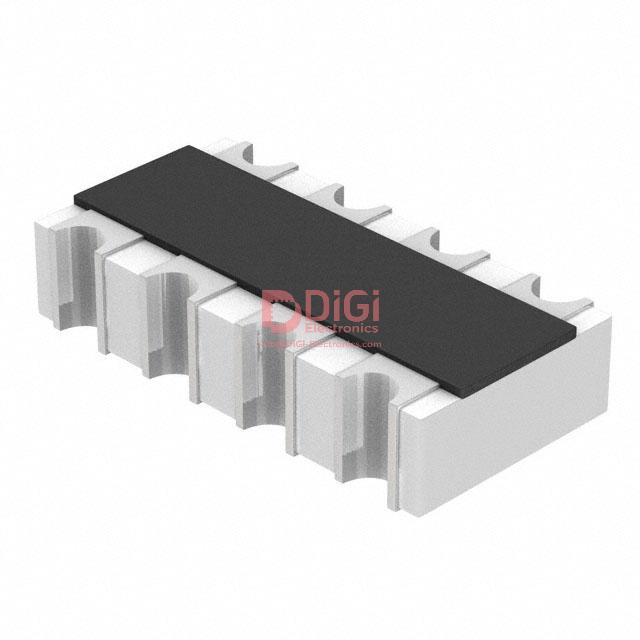

This Panasonic Electronic Components EXB-N8V680JX is an isolated resistor network comprising four individual resistors. Each resistor offers a nominal resistance of 68 Ohms with a tolerance of ±5%. The network is suitable for operation within a temperature range of -55°C to 125°C, with a temperature coefficient of ±200ppm/°C.
The component is designed for surface mount applications and comes in an 0804 package. It has a height of 0.55mm, a length of 2.00mm, and a width of 1.00mm. The power dissipation per element is rated at 31mW. With 8 pins, this resistor network is a reliable choice for various electronic circuits requiring precise resistance values in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Each resistor in the EXB-N8V680JX network has a resistance of 68 Ohms.
The resistors in the EXB-N8V680JX network have a tolerance of ±5%.
The EXB-N8V680JX network contains 4 resistors.
The operating temperature range for the EXB-N8V680JX is -55°C to 125°C.
The EXB-N8V680JX resistor network is in an 0804 package.
