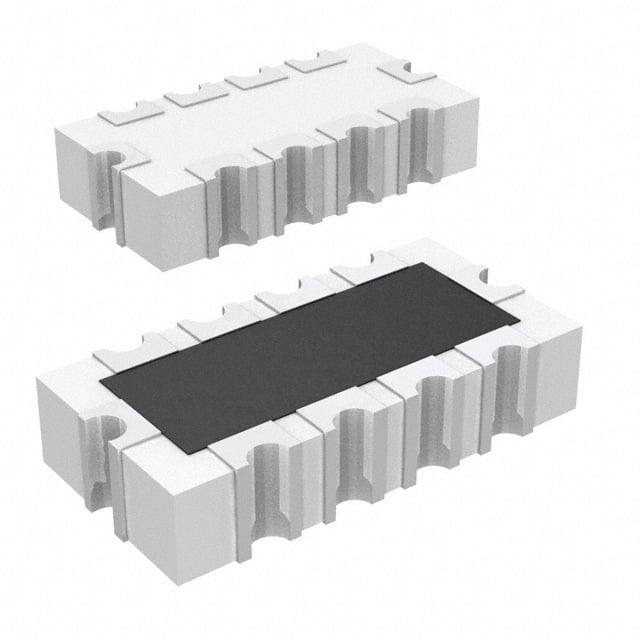

EXB-D10C822J The Panasonic EXB-D10C822J is an 8-resistor network/array with a resistance of 8.2k Ohms and a tolerance of ±5%. It is designed for surface mount applications in a 1206 package.
Mfr Part #:

EXB-D10C822J

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic EXB-D10C822J is an 8-resistor network/array with a resistance of 8.2k Ohms and a tolerance of ±5%. It is designed for surface mount applications in a 1206 package.
✓ Total Stock: 10 pcs
$ Price Range: $0.05

EXB-D10C822J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EXB-D10C822J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

EXB-D10C822J Description

Short technical summary and product information.

The Panasonic EXB-D10C822J is a bussed resistor network/array featuring 8 individual resistors, each rated for 50mW. It offers a resistance value of 8.2k Ohms with a tolerance of ±5% and a temperature coefficient of ±200ppm/°C.



This component is housed in a 1206 (3216 Metric) package, suitable for surface mount (SMT) applications. Its operating temperature range is -55°C to +125°C. The network has 10 pins and is qualified to AEC-Q200 standards, indicating suitability for automotive and harsh environment applications.



Key specifications include a length of 3.20mm, width of 1.60mm, and height of 0.65mm. The bussed configuration simplifies circuit design where multiple resistors are needed in a common configuration. This part is supplied on a reel for automated assembly processes.

EXB-D10C822J Quick Information

Product Type: Resistor Network/Array
Series: EXB-D10
Canonical Name: Panasonic EXB-D10C822J 8-Resistor Network/Array
Subcategory: Resistor Networks & Arrays

EXB-D10C822J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EXB-D10C822J Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

EXB-D10C822J Features

  • 8-resistor bussed network/array.
  • 8.2k Ohm resistance with ±5% tolerance.
  • 50mW power rating per element.
  • 1206 surface mount package.
  • AEC-Q200 qualified for reliability.

EXB-D10C822J Applications

  • Ideal for signal conditioning circuits.
  • Suitable for automotive applications.
  • Used in power management designs.
  • Applicable in general electronic circuits.

EXB-D10C822J FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the EXB-D10C822J?

The resistance value is 8.2k Ohms.

What is the tolerance of the EXB-D10C822J resistor network?

The tolerance is ±5%.

How many resistors are in the EXB-D10C822J network?

There are 8 resistors in this network.

What is the operating temperature range for the EXB-D10C822J?

The operating temperature range is -55°C to +125°C.

What package type is the EXB-D10C822J resistor network?

It is a 1206 (3216 Metric) package suitable for surface mounting.

Is the EXB-D10C822J AEC-Q200 qualified?

Yes, the EXB-D10C822J is qualified to AEC-Q200 standards.
