| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

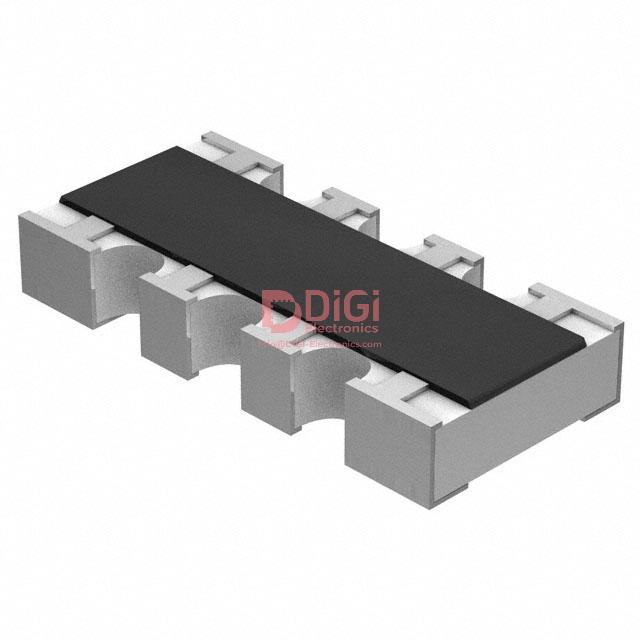

This Panasonic Electronic Components EXB-38V560JV is a resistor network featuring 4 isolated resistors. Each resistor has a resistance value of 56 Ohms with a tolerance of ±5%. The power rating per element is 62.5mW, and the operating temperature range is -55°C to 125°C.
The component is housed in a 1206 (3216 Metric) package and is designed for surface mount applications. Its dimensions are 3.20mm in length and 1.60mm in width, with a height of 0.60mm. The temperature coefficient is ±200ppm/°C.
This resistor network is suitable for applications requiring precise resistance values and stable performance across a wide temperature range. The isolated circuit configuration ensures that each resistor operates independently, providing flexibility in circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 56 Ohms.
The tolerance is ±5%.
There are 4 resistors in the network.
The power rating per element is 62.5mW.
The operating temperature range is -55°C to 125°C.
It is in a 1206 (3216 Metric) package.
