| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

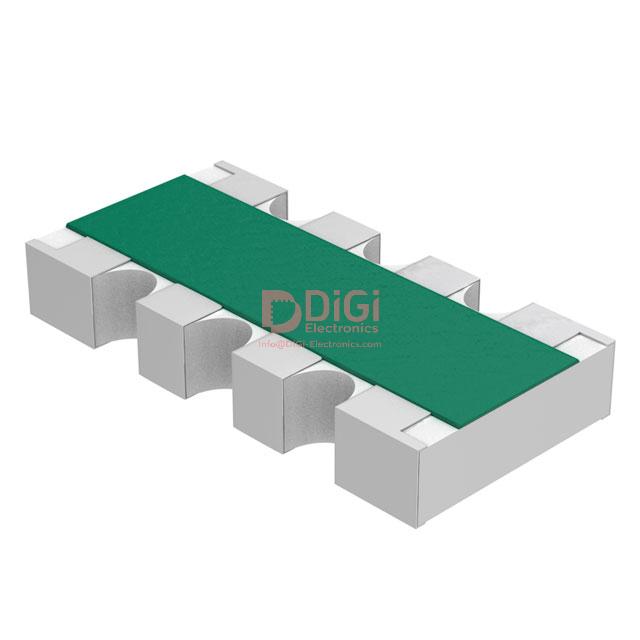

This resistor network, part number EXB-38V391JV from Panasonic Electronic Components, offers a configuration of 4 isolated resistors. Each resistor has a nominal resistance of 390 Ohms and a tolerance of ±5%. The network is designed for surface mount applications and comes in a 1206 (3216 Metric) package.
With a power rating of 62.5mW per element and a temperature coefficient of ±200ppm/°C, this component is suitable for various electronic circuits. The operating temperature range is from -55°C to 125°C. Its applications include automotive environments, as indicated by the AEC-Q200 qualification.
The compact dimensions of 3.20mm L x 1.60mm W x 0.60mm H make it ideal for space-constrained designs. The surface mountable design and isolated circuit type provide flexibility in circuit layout and implementation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Each resistor in the EXB-38V391JV network has a resistance of 390 Ohms.
The resistors in the EXB-38V391JV network have a tolerance of ±5%.
The EXB-38V391JV resistor network contains 4 resistors.
The EXB-38V391JV resistor network features an isolated circuit type.
Each element in the EXB-38V391JV resistor network is rated for 62.5mW.
The EXB-38V391JV resistor network operates within a temperature range of -55°C to 125°C.
The EXB-38V391JV resistor network is supplied in a 1206 (3216 Metric) package.
