| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

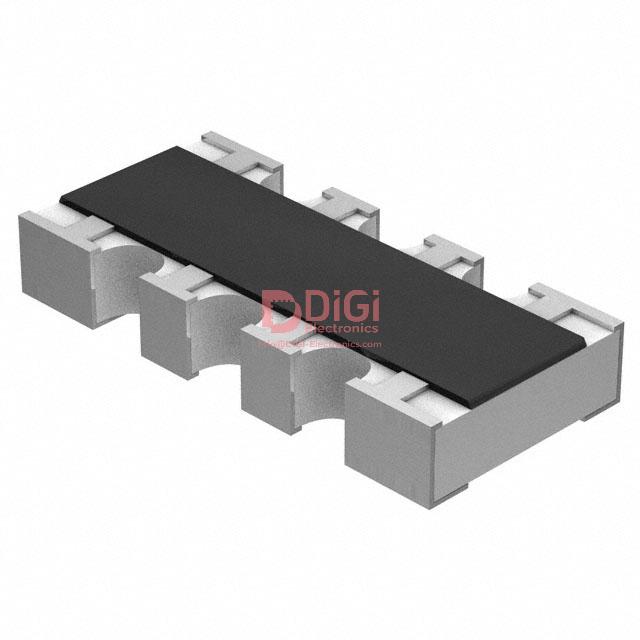

This Panasonic Electronic Components EXB-38V270JV is a 4-resistor network designed for surface mount applications. It offers a resistance value of 27 Ohms with a tolerance of ±5% and operates with 62.5mW of power per element.
The component is housed in a 1206 (3216 Metric) package with long side terminals and a convex termination style. Its isolated circuit type makes it suitable for various electronic designs. The operating temperature range is -55°C to 125°C, with a temperature coefficient of ±200ppm/°C.
This resistor network is also specified for Automotive AEC-Q200 applications, indicating its suitability for demanding automotive environments. The dimensions are 3.20mm in length and 1.60mm in width, with a height of 0.60mm.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The product is supplied in Tape & Reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 27 Ohms.
The tolerance is ±5%.
There are 4 resistors in the network.
The circuit type is isolated.
The power per element is 62.5mW.
The operating temperature range is -55°C to 125°C.
It is a 1206 (3216 Metric) package with convex, long side terminals.
