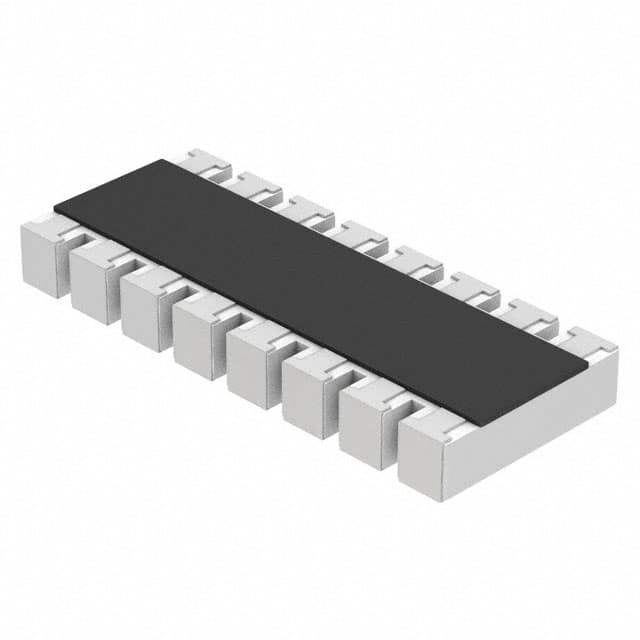

EXB-2HV330JV The Panasonic Electronic Components EXB-2HV330JV is a resistor network with 8 resistors, each rated at 33 Ohms with a ±5% tolerance. It is designed for surface mount applications in a 1506 package.
Mfr Part #:

EXB-2HV330JV

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components EXB-2HV330JV is a resistor network with 8 resistors, each rated at 33 Ohms with a ±5% tolerance. It is designed for surface mount applications in a 1506 package.
✓ Total Stock: 20 pcs
$ Price Range: $0.05

EXB-2HV330JV Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
深圳控芯电子 ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EXB-2HV330JV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Automotive Grade
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

EXB-2HV330JV Description

Short technical summary and product information.

This Panasonic Electronic Components EXB-2HV330JV is a resistor network designed for surface mount applications. It features 8 individual resistors, each with a resistance value of 33 Ohms and a tolerance of ±5%. The network operates within a temperature range of -55°C to 125°C and has a power rating of 62.5mW per element.



The component is housed in a 1506 package with convex, long side terminals, suitable for surface mounting. Its circuit type is isolated, and it is specified for automotive applications conforming to AEC-Q200 standards. The dimensions are 3.80mm in length and 1.60mm in width.



With a temperature coefficient of ±200ppm/°C, this resistor network is suitable for applications requiring stable resistance over varying temperatures. The MSL rating is 1, indicating unlimited moisture sensitivity.

EXB-2HV330JV Quick Information

Product Type: Resistor Network
Canonical Name: Panasonic Electronic Components EXB-2HV330JV Resistor Network
Subcategory: Arrays

EXB-2HV330JV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EXB-2HV330JV Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

EXB-2HV330JV Features

  • 8 resistors in a single package.
  • 33 Ohm resistance with ±5% tolerance.
  • 1506 surface mount package.
  • Automotive AEC-Q200 compliant.
  • Operating temperature -55°C to 125°C.

EXB-2HV330JV Applications

  • Ideal for automotive electronic systems.
  • Suitable for signal conditioning circuits.
  • Used in power management modules.
  • Applicable in general purpose circuitry.

EXB-2HV330JV FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the EXB-2HV330JV resistor network?

The resistance value is 33 Ohms.

What is the tolerance of the resistors in the EXB-2HV330JV network?

The tolerance is ±5%.

How many resistors are in the EXB-2HV330JV network?

There are 8 resistors in the network.

What type of package is the EXB-2HV330JV resistor network in?

It is in a 1506 package with convex, long side terminals.

What is the operating temperature range for the EXB-2HV330JV?

The operating temperature range is -55°C to 125°C.
