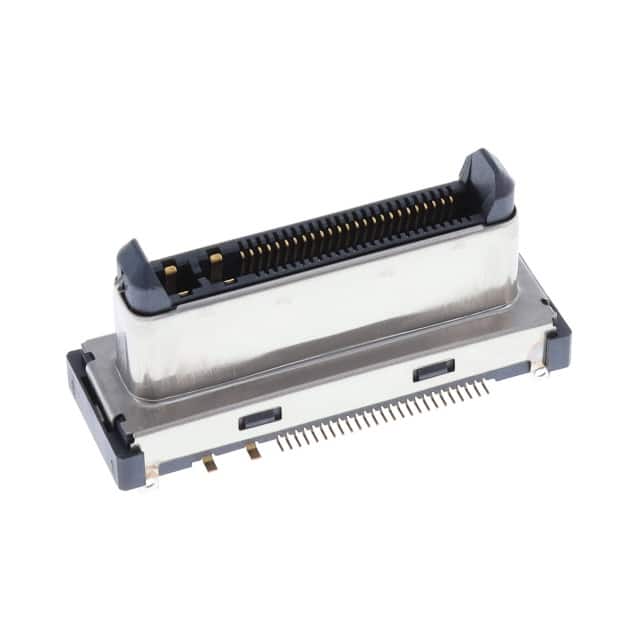

The EX80-54P(70) is a board-to-board connector from Hirose Electric's EX80 series. It is a plug with outer shroud contacts, featuring 54 positions arranged in 2 rows with a fine 0.60mm pitch. Designed for surface mount soldering, it incorporates a board guide feature for accurate alignment during assembly.
The connector's contacts are finished with 20.0µin (0.51µm) of gold, ensuring low contact resistance and resistance to corrosion. The mating height above the board is 15.10mm, making it suitable for mezzanine (stacked) PCB interconnects where a 0.60mm pitch and 54 signal paths are required.
The EX80-54P(70) is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of MSL 1 (unlimited). These attributes support its use in lead-free soldering processes and unrestricted storage handling. The surface mount termination style allows for automated pick-and-place assembly.
54 positions arranged in 2 rows.
0.60mm pitch.
Surface mount (SMT).
Yes, RoHS3 compliant.
Gold with 20.0µin thickness.
