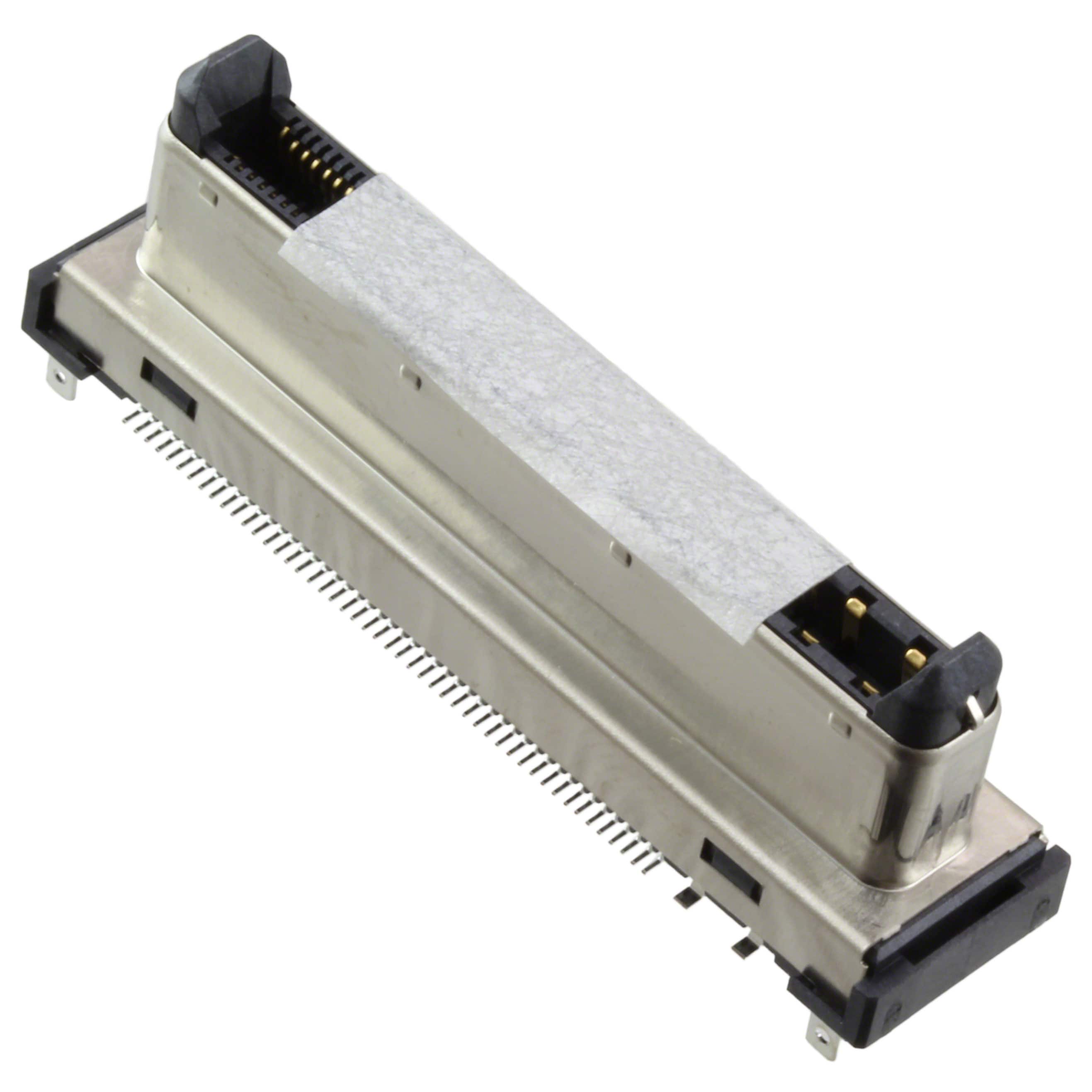

EX80-100P1(31) Hirose Electric EX80-100P1(31) is a 100 position plug connector with outer shroud contacts. It features 0.60mm pitch, surface mount mounting, and gold contact finish.
Mfr Part #:

EX80-100P1(31)

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose Electric EX80-100P1(31) is a 100 position plug connector with outer shroud contacts. It features 0.60mm pitch, surface mount mounting, and gold contact finish.
✓ Total Stock: 100 pcs

EX80-100P1(31) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EX80-100P1(31) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

EX80-100P1(31) Description

Short technical summary and product information.

The Hirose Electric EX80-100P1(31) is a 100-position plug connector designed for board-to-board applications. It features outer shroud contacts arranged in 2 rows with a 0.60mm pitch, enabling high-density interconnections. The connector is surface mount compatible and has a height above board of 0.594 inches (15.10mm). Contact surfaces are finished with gold for reliable conductivity. A built-in board guide aids alignment during assembly. This component is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is suitable for use in mezzanine or stacking configurations where space is limited.

EX80-100P1(31) Quick Information

Product Type: Board-to-Board Connector
Canonical Name: Hirose Electric EX80-100P1(31) - 100 Position Plug Connector, Outer Shroud Contacts, 0.60mm Pitch, SMT
Subcategory: Mezzanine Connector

EX80-100P1(31) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EX80-100P1(31) Features

  • 100 positions in 2 rows.
  • 0.60mm pitch for high density.
  • Surface mount mounting.
  • Gold contact finish.
  • Includes board guide for alignment.

EX80-100P1(31) Applications

  • Used in board-to-board mezzanine connections.
  • Suitable for high-density interconnect applications.
  • Ideal for compact electronic assemblies.
  • Common in telecommunications and networking equipment.

EX80-100P1(31) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EX80-100P1(31) have?

100 positions.

What is the pitch of this connector?

0.60mm.

What is the mounting type?

Surface mount.

How many rows does it have?

2 rows.

What is the contact finish?

Gold.

What is the height above board?

0.594 inches (15.10mm).

Does it have any features?

Yes, it includes a board guide.
