| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 04+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit Type | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Switching Voltage | |
| Termination Style |

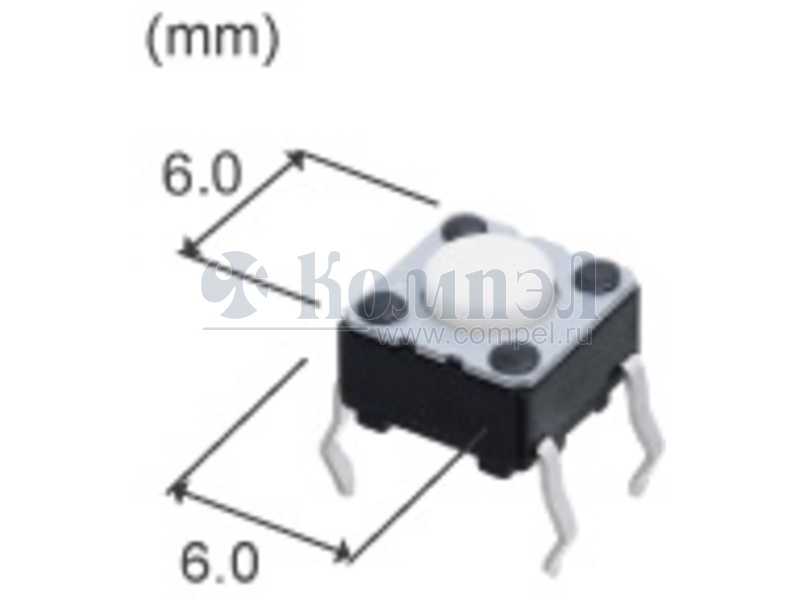

The Panasonic EVQPAG07K is a momentary tactile switch from the 5N Type series, designed for various electronic equipment applications. This switch features a Single Pole Single Throw (SPST) circuit and is suitable for through-hole mounting with solder terminals.
Key electrical specifications include a maximum operating current of 0.02A and a maximum operating voltage of 15VDC (resistive load). The contact resistance is a maximum of 50mΩ, and insulation resistance is a minimum of 50MΩ at 100VDC. The switch has a dielectric withstanding voltage of 250Vac for one minute.
Mechanically, the EVQPAG07K offers various operating forces ranging from 1.0N to 2.6N, with a travel of 0.25mm ±0.10mm. It boasts a high operating life, with a minimum of 50,000 to 100,000 cycles depending on the specific configuration. The operating temperature range is -20°C to +70°C, and storage temperature ranges from -40°C to +85°C.
This component can be automatically dip-soldered due to its integral molding of terminals and main body, which prevents flux escape. It is available in bulk packaging with 500 pieces per unit.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating current for the EVQPAG07K is 0.02A.
The maximum operating voltage for the EVQPAG07K is 15VDC with a resistive load.
The EVQPAG07K has a momentary actuator.
The EVQPAG07K is a through-hole mount tactile switch.
The operating temperature range for the EVQPAG07K is -20°C to +70°C.
The minimum operating life is 50,000 cycles, with some configurations offering up to 100,000 cycles.
The standard package quantity is 500 pieces in bulk.
