| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,845 pcs
|
3845 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Height | |
| Illumination | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

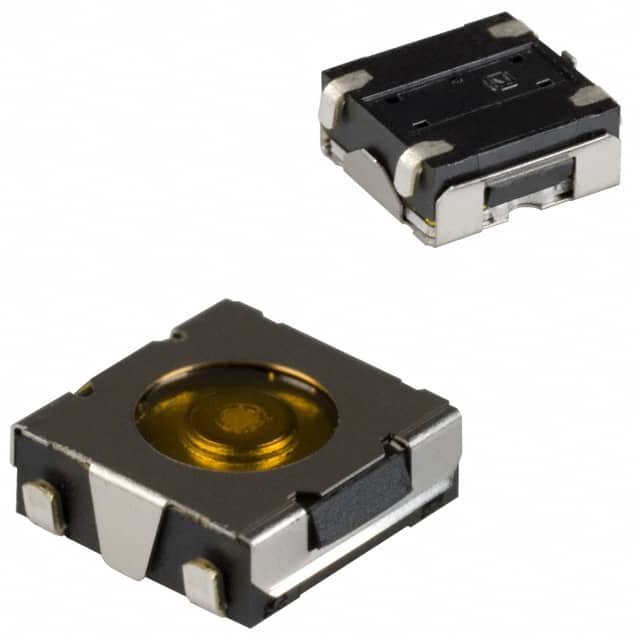

This Panasonic EVQ-QFV02K is a 2.0 mm-high chip tactile switch designed for surface mounting and reflow soldering. It features a snap action, push-on type SPST-NO (Single Pole Single Throw Normally Open) circuit.
The switch has an electrical rating of 0.02A at 15VDC with a contact resistance of 50 mΩ maximum and insulation resistance of 50 MΩ minimum. The operating force is typically 1.3 N ± 0.4 N, with a travel of 0.25 mm ± 0.10 mm. The mechanical endurance is rated for a minimum of 100,000 cycles.
Environmental specifications include an operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C. The switch is non-washable.
Recommended applications include operating switches for camcorders and headphone stereos, as well as operating signal input switches for communication equipment. The dimensions are 6.20mm x 6.20mm with a profile height of 2.0mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EVQ-QFV02K tactile switch is rated for a maximum of 15 VDC and 0.02A.
The operating temperature range for the EVQ-QFV02K is -20°C to +70°C.
The operating force for the EVQ-QFV02K is 1.3 N ± 0.4 N.
The EVQ-QFV02K tactile switch has a minimum operating life of 100,000 cycles.
The EVQ-QFV02K tactile switch is designed for surface mounting.
