| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

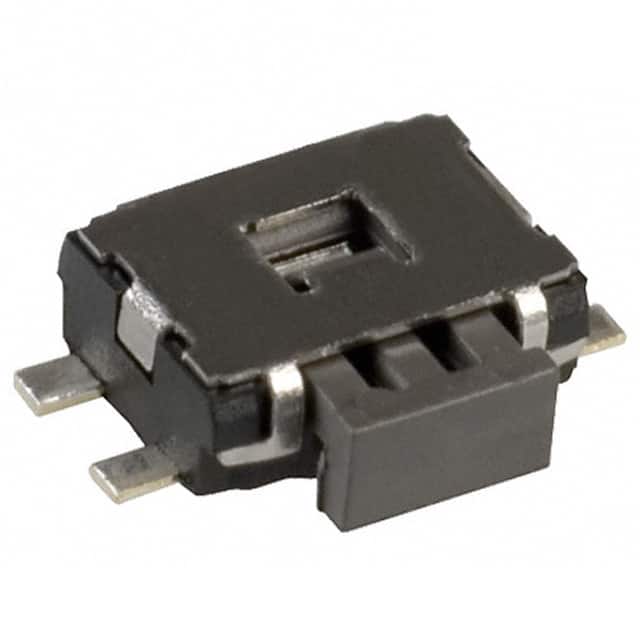

The Panasonic Electronic Components EVQ-PUL02K is a tactile switch designed for various electronic applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration, capable of handling 0.05A at 12VDC.
This switch has an operating force of 160gf and a rectangular button actuator. Its mounting type is surface mount with a right-angle orientation, and it utilizes a gull wing termination style for secure connections. The operating temperature range is from -20°C to 70°C.
Key specifications include a non-illuminated design and an outline dimension of 6.40mm x 3.50mm. The switch function is Off-Mom, meaning it is momentary when the button is pressed. It also includes a 'Board Guide' feature.
This component is suitable for applications requiring a reliable, momentary tactile switch with specific mounting and termination requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EVQ-PUL02K has a SPST-NO circuit.
The contact rating is 0.05A at 12VDC.
The operating temperature range is -20°C to 70°C.
It is a surface mount, right angle type.
The termination style is Gull Wing.
