| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
835 pcs
|
835 pcs | On Request | 1 | On Request | On Request | 1807+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Operating Temperature Range | |
| Outline | |
| Switch Function | |
| Terminal Style | |
| Termination Style |

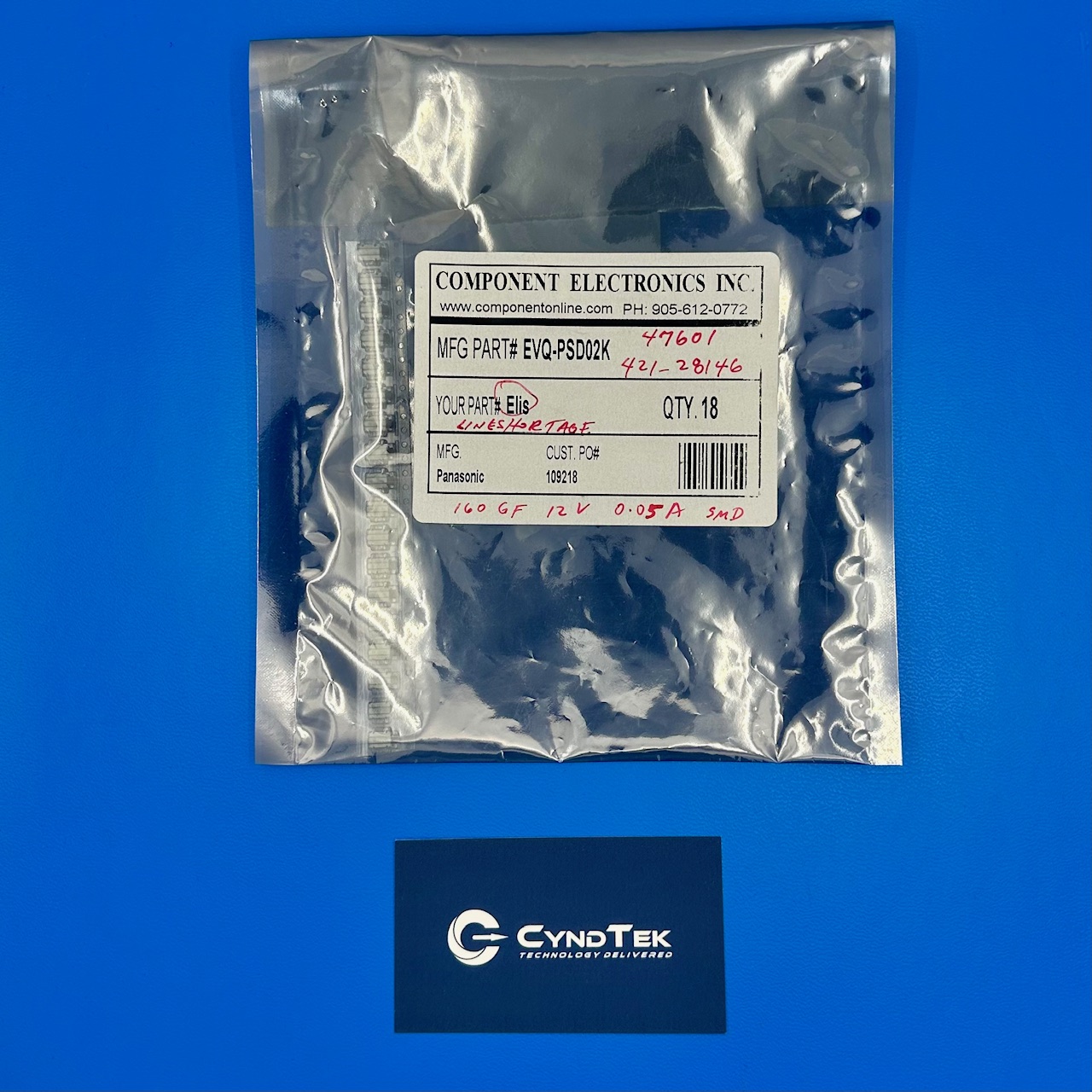

The Panasonic EVQ-PSD02K is a tactile switch designed for reliable input control in space-constrained electronics. It offers a momentary, normally open (SPST-NO) contact configuration suitable for low-level signal switching.
Key electrical specifications include a contact rating of 0.05A at 12VDC. Mechanically, it features a standard actuator type with a side actuation orientation and an operating force of 160gf. The switch has an outline of 4.60mm x 6.10mm and is non-illuminated.
This tactile switch is designed for surface mounting with a right-angle orientation and J Lead termination style. The operating temperature range is specified from -20°C to 70°C, with fetched data indicating a broader range of -40°C to +85°C. The low-profile body style and gull-wing terminals support automated assembly and integration into thin enclosures.
Applications for the EVQ-PSD02K include consumer electronics user interfaces, portable device control buttons, industrial control panels, and human-machine interface modules. Its compact size, dependable performance, and consistent tactile feedback make it a practical choice for modern electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch function is Off-Mom (Off-Momentary).
The circuit configuration is SPST-NO (Single Pole Single Throw - Normally Open).
The contact rating is 0.05A at 12VDC.
The operating force is 160gf.
The mounting type is Surface Mount, Right Angle.
The operating temperature range is -20°C to 70°C.
