| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Height | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

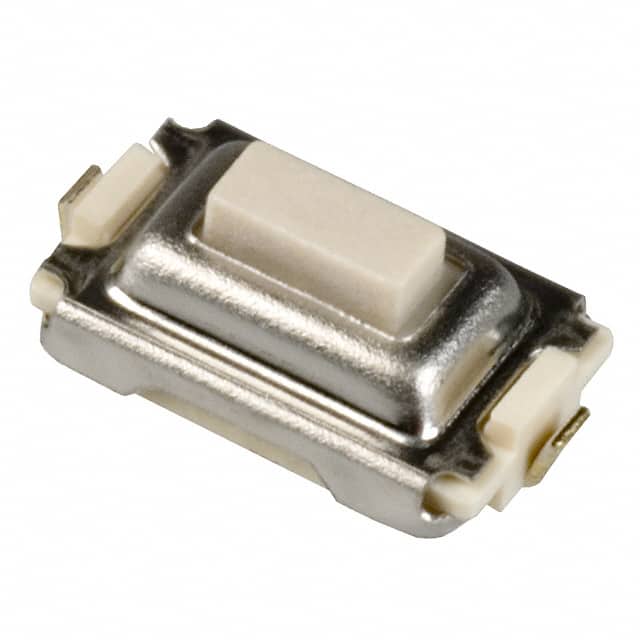

The Panasonic Electronic Components EVQ-PPDA25 is a tactile switch designed for surface mount applications. It offers a compact 2.5mm height and a 6.00mm x 3.70mm outline, making it suitable for space-constrained designs.
This switch features a SPST-NO circuit configuration and a standard actuator type with top actuation. It is rated for 0.05A at 12VDC and has a contact resistance of 100 mOhm. The operating force is 2.4N, with a travel of 0.25mm. The switch is dustproof and operates within a temperature range of -40°C to 85°C.
Recommended for operating signal input in portable devices, the EVQ-PPDA25 is designed for reflow soldering and provides a clear click feeling. Its endurance is rated for a minimum of 30,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 Vdc.
The operating temperature range is -40°C to 85°C.
The height is 2.5 mm.
The circuit is SPST-NO.
The operating force is 2.4 N.
