| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,255 pcs
|
2255 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

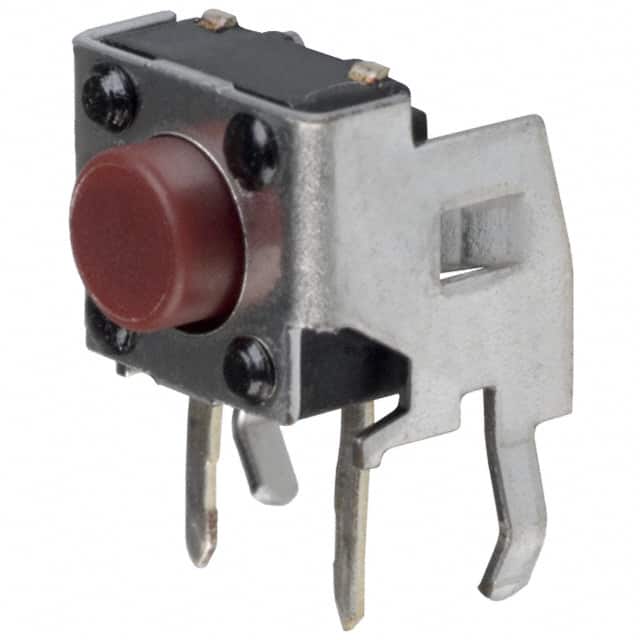

This Panasonic EVQ-PF304R is a tactile switch designed for electronic equipment applications. It operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
The switch has an electrical rating of 0.02A at 15VDC. It features a mechanical operating force of 2.6N ± 0.6N and a travel of 0.25mm ± 0.10mm. The endurance is rated for a minimum of 50,000 cycles.
Designed for through-hole mounting, this switch is oriented for right-angle placement. Its dimensions are 7.50mm x 7.10mm, with an actuator length of 3.85mm. The operating temperature range is -20 °C to +70 °C.
Key specifications include a contact resistance of 50 mΩ max and insulation resistance of 50 MΩ min. The dielectric withstanding voltage is 250 Vac for 1 minute. Bouncing times are 3ms max (ON) and 8ms max (OFF).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.02A at 15VDC.
-20°C to +70°C.
Through hole, right-angle mounting.
0.25 mm ± 0.10 mm.
