| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,034 pcs
|
2034 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

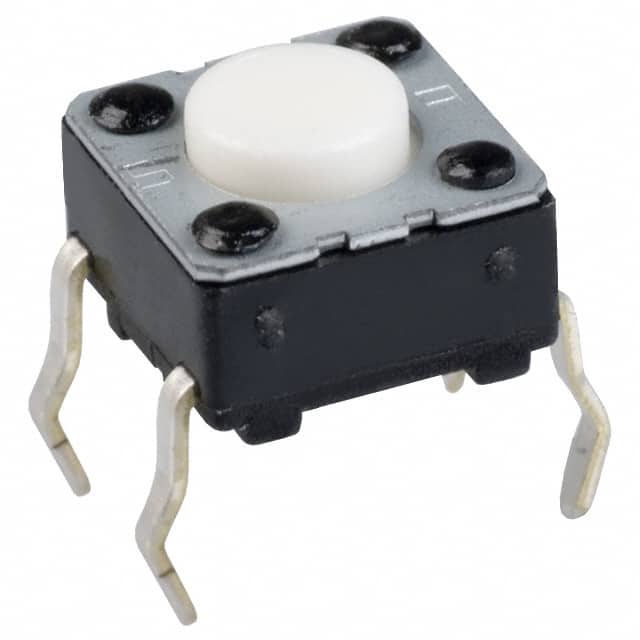

This Panasonic Electronic Components EVQ-PAE04M is a tactile switch designed for various applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
The switch is rated for a contact rating of 0.02A at 15VDC. It operates within a temperature range of -20°C to 70°C. The termination style is PC Pin, and it is designed for Through Hole mounting.
Key mechanical specifications include an actuator height of 4.30mm off the PCB and an outline measuring 6.00mm by 6.00mm. The actuator type is standard, and it is non-illuminated. The operating force required is 160gf.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20°C to 70°C
0.02A @ 15VDC
Through Hole
SPST-NO
