EVQ-PBC07K
Panasonic Electronic Components
The Panasonic Electronic Components EVQ-PBC07K is a tactile switch with an Off-Mom function and SPST-NO circuit. It is designed for Through Hole mounting.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41,192 pcs
|
41192 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

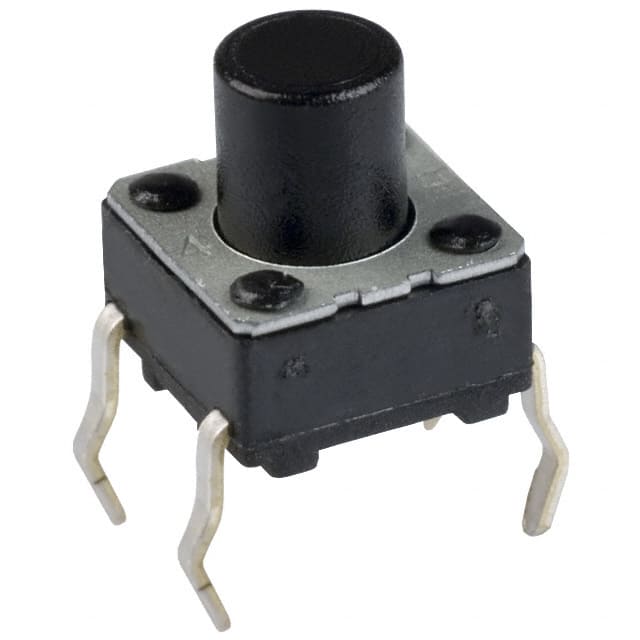

The Panasonic Electronic Components EVQ-PAC07K is a tactile switch featuring a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It offers a contact rating of 0.02A at 15VDC and is designed for through-hole mounting.
This switch operates with a standard actuator type and is top actuated. It has a vertical actuator height of 7.00mm off the PCB and a termination style of PC Pin. The switch dimensions are 6.00mm x 6.00mm and it is non-illuminated.
Key specifications include an operating force of 100gf, a switch travel of 0.25mm, and a mechanical life of 100,000 cycles. The operating temperature range for this component is -20°C to 70°C. The series is identified as EVQPA.
Environmental compliance includes RoHS status as RoHS Compliant, Moisture Sensitivity Level (MSL) 1 Unlimited, and REACH status as REACH Unaffected. The package type is Bulk with a standard package quantity of 500 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20°C to 70°C
0.02A @ 15VDC
Through Hole
100,000 Cycles
RoHS Compliant
1 Unlimited
