| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
$0.32
|
5000 pcs |
$0.32
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Operating Temperature (Maximum @ Max) | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

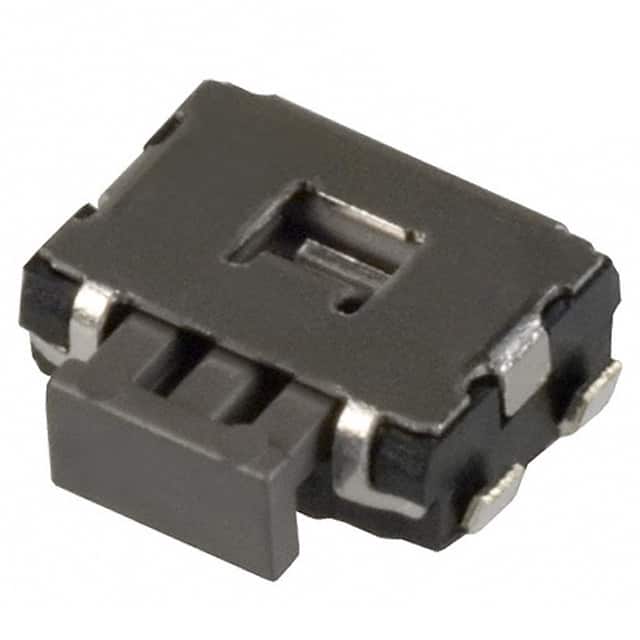

This tactile switch from Panasonic Electronic Components, part number EVQ-P7D01P, is designed for various electronic applications. It operates with an SPST-NO (Single Pole, Single Throw, Normally Open) circuit configuration.
The switch has a contact rating of 0.05A at 12VDC. It is designed for surface mounting with a right-angle orientation, utilizing J Lead termination style. The actuator type is a rectangular button, and it is non-illuminated.
Mechanical specifications include an operating force of 220gf and an outline dimension of 4.30mm x 2.90mm. The operating temperature range is from -20°C to 70°C. The switch is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EVQ-P7D01P has an SPST-NO circuit.
The contact rating is 0.05A at 12VDC.
It is a surface mount, right angle type.
The operating temperature range is -20°C to 70°C.
Yes, it is RoHS3 compliant.
The MSL is 1 Unlimited.
