| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,377 pcs
|
2377 pcs | On Request | 1 | On Request | On Request | 2011+ | On Request | On Request | |
|
1,969 pcs
|
1969 pcs | On Request | 1 | On Request | On Request | 2010 | On Request | 2026-05-08 03:16:53 |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Bounce Time | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Dielectric Withstand Voltage | |
| Electrical Rating | |
| External Dimensions | |
| Illumination | |
| Insulation Resistance | |
| Mounting Height | |
| Mounting Type | |
| Operating Force | |
| Operating Life | |
| Operating Temperature | |
| Outline | |
| Push Strength | |
| Push Travel | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

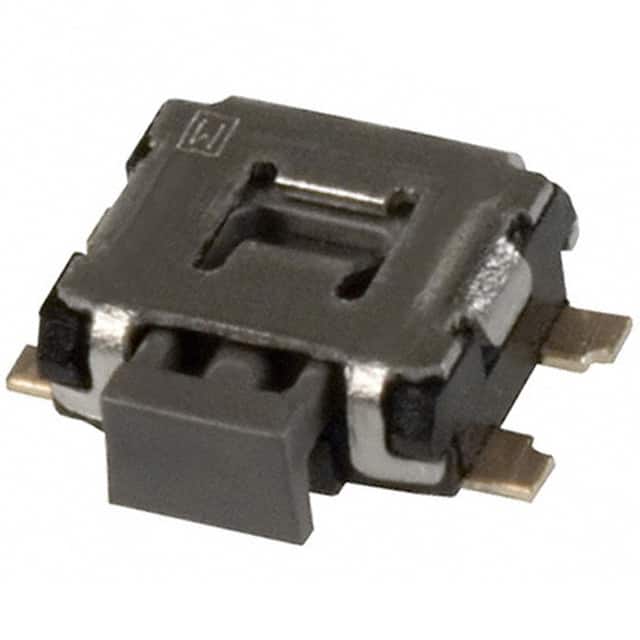

This Panasonic Electronic Components EVQ-P7A01K is a tactile switch designed for various applications. It operates with a SPST-NO circuit and has a contact rating of 0.05A at 12VDC. The switch requires an operating force of 220gf and features a rectangular button actuator with a side orientation.
The mounting type is Surface Mount, Right Angle, with a Gull Wing termination style. The external dimensions are 4.70mm x 2.90mm, and it has a mounting height of 1.35mm. The operating temperature range is -20°C to +70°C.
Key electrical specifications include a contact resistance of 500 mOhm maximum and an insulation resistance of 100 MOhms minimum. It also has a dielectric withstand voltage of 250 Vac and a contact bounce time of 10 ms maximum. The mechanical endurance is rated for a minimum of 100,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The electrical rating is 10 µA 2 Vdc to 50 mA 12 Vdc.
The operating temperature range is -20°C to +70°C.
The mounting type is Surface Mount, Right Angle, and the termination style is Gull Wing.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The contact rating is 0.05A at 12VDC.
The operating force is 220gf.
