| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

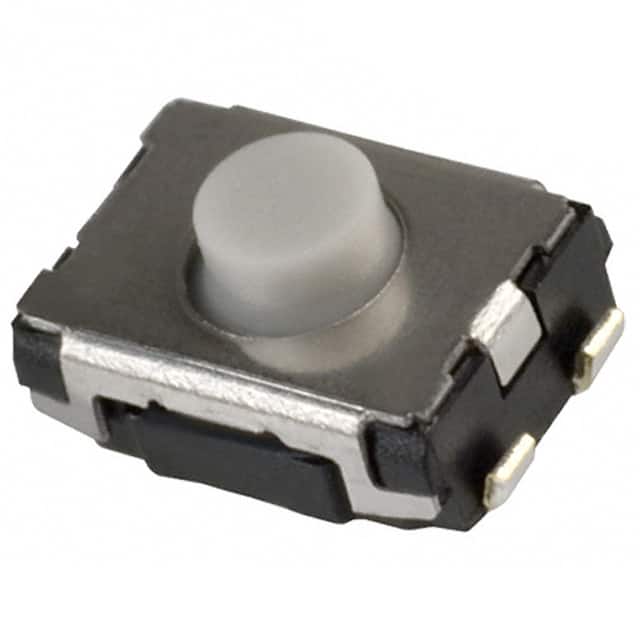

This Panasonic Electronic Components EVQ-P2K02Q is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration.
The switch is rated for a contact current of 0.02A at a voltage of 15VDC. It operates within a temperature range of -40°C to 85°C and requires an operating force of 350gf. The actuator height off the PCB is 2.50mm, and it has a standard actuator type.
Designed for surface mounting, this switch utilizes a J Lead termination style. Its outline dimensions are 4.70mm x 3.50mm. The switch is non-illuminated and features a top-actuated orientation. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
This component is suitable for applications requiring a reliable tactile switching solution with specific mechanical and electrical characteristics. Its surface mount design facilitates integration into modern PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.02A at 15VDC.
It is a surface mount device.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
