| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,895 pcs
|
2895 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

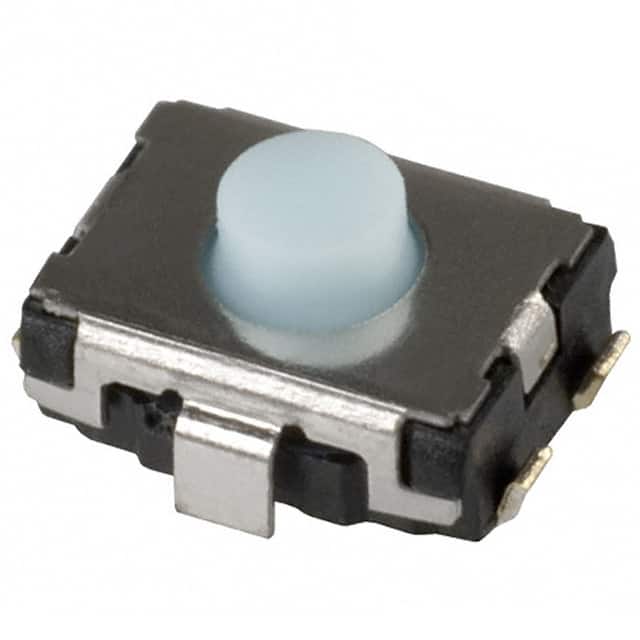

The Panasonic Electronic Components EVQ-P2H02B is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration.
Key electrical specifications include a contact rating of 0.02A at 15VDC. The switch operates within a temperature range of -40°C to 85°C. It is designed with a standard actuator type and top actuated orientation, with an actuator height of 2.50mm off the PCB.
This tactile switch utilizes a Surface Mount technology for installation and features a J Lead termination style. Its outline dimensions are 4.70mm by 3.50mm. The switch is non-illuminated.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1 (Unlimited), and REACH Unaffected status. This part is suitable for applications requiring a reliable and compact tactile switching solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C
0.02A @ 15VDC
Surface Mount
SPST-NO
Non-Illuminated
