| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,120 pcs
|
1120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

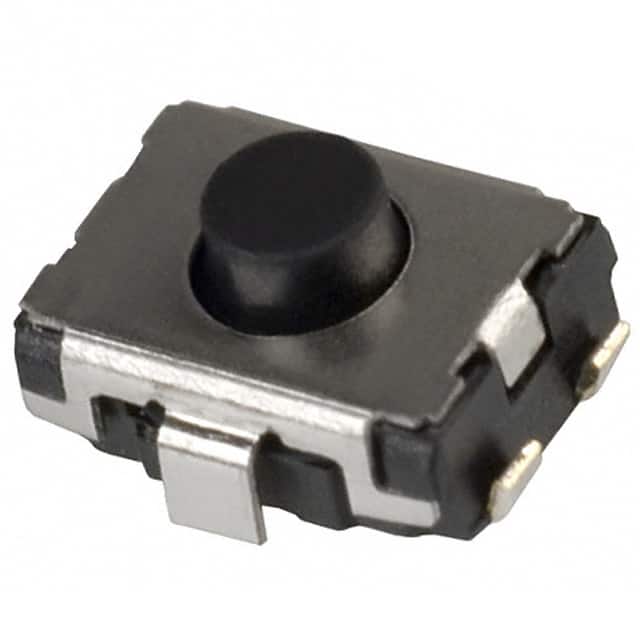

This Panasonic Electronic Components EVQ-P2F02K is a tactile switch designed for various electronic applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration, capable of handling 0.02A at 15VDC.
The switch is designed for surface mounting, with a termination style of J Lead. Its dimensions are 4.70mm x 3.50mm, and the actuator height off the PCB is 2.50mm. The operating force required is 500gf, and it is a standard, non-illuminated type with top actuation.
Environmental specifications include an operating temperature range of -40°C to 85°C. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It also features a grounding pin for added functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EVQ-P2F02K has a SPST-NO circuit.
The contact rating is 0.02A at 15VDC.
The operating temperature range is -40°C to 85°C.
This switch is designed for surface mounting.
The RoHS status is RoHS3 Compliant.
