| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

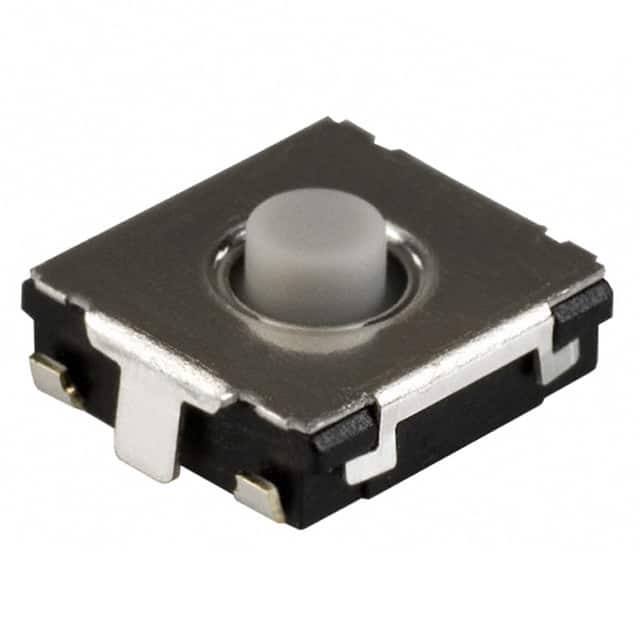

The Panasonic Electronic Components EVQ-P0N02B is a tactile switch designed for various electronic applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
Key electrical specifications include a contact rating of 0.02A at 15VDC. The switch operates within a temperature range of -40°C to 85°C. It has an actuator height of 2.50mm off the PCB and an outline measuring 6.50mm by 6.00mm.
This tactile switch is designed for Surface Mount applications with a J Lead termination style. It is non-illuminated and has a standard actuator type. The operating force required is 60gf.
The RoHS status is compliant with RoHS3, and the Moisture Sensitivity Level (MSL) is 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.02A at 15VDC.
It is a Surface Mount switch.
The termination style is J Lead.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
