| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,291 pcs
|
5291 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,088 pcs
|
3088 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Dimensions | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

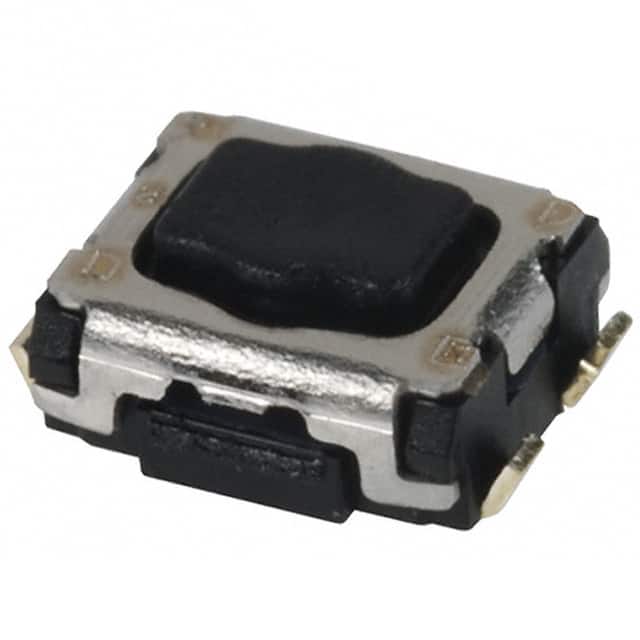

This Panasonic Electronic Components EVP-AA002K is a tactile switch belonging to the EVP-AA series. It features a SPST-NO circuit configuration and a contact rating of 0.02A at 15VDC. The switch is designed for surface mount applications with a J-Bend termination style and a top-actuated, rectangular button actuator.
With an outline of 3.5 x 2.9 mm, this non-illuminated tactile switch operates within a temperature range of -40°C to 85°C. The actuation force is specified at 100gf. The component is RoHS3 compliant and has an MSL rating of 1 Unlimited, indicating suitability for a wide range of environmental conditions.
This switch is suitable for various electronic designs requiring a compact and reliable tactile input method. Its surface mount capability allows for automated assembly processes, making it efficient for high-volume production.
The EVP-AA002K is a standard actuator style switch, offering a dependable off-mom function. Its dimensions and termination style are optimized for integration into compact PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.02A @ 15VDC.
It is a surface mount device.
The termination style is J-Bend.
The actuation force is 1 N.
The outline dimensions are 3.5 x 2.9 mm.
