| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Main Purpose | |
| Outputs and Type | |
| Power | |
| Regulator Topology | |
| Supplied Contents | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

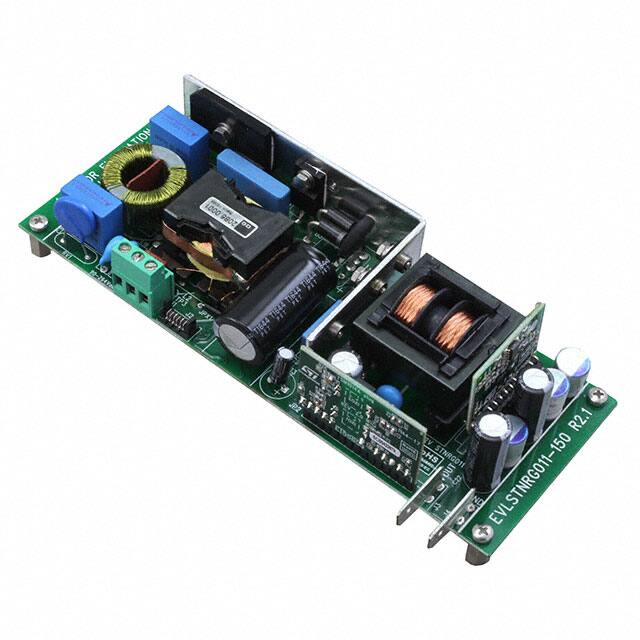

The EVLSTNRG011-150 is an evaluation board designed for the STNRG011 digital controller, targeting 150 W AC/DC power supplies. It employs a resonant regulator topology with power factor correction (PFC) on both primary and secondary sides. The board accepts an input voltage range of 90-264 VAC and provides a single non-isolated output. It is supplied as a fully populated board, ready for evaluation.
The board is built around the STNRG011 IC, which integrates PFC and resonant control. The resonant topology enables high efficiency and reduced electromagnetic interference. The board is intended for engineers developing offline power supplies in the 150 W range.
Compliance information includes RoHS3, REACH unaffected, and MSL 1, though these are unverified. The board is categorized under evaluation boards for AC/DC and DC/DC SMPS applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $276.35 | $276.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90-264 VAC.
150 W.
Resonant.
STNRG011.
RoHS3 Compliant (unverified).
MSL 1 Unlimited (unverified).
Fully populated.
